63J2R175X50-SLSN104-C
63J2R175X50-SLSN104-C
63J2R175X50-SLSN104-C

63J2R175X50-SLSN104-C

UGC DOR6760427
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3,710.00 CAD - $3,710.00 CAD
$3,710.00 CAD
$3,710.00 CAD - $3,710.00 CAD
$3,710.00 CAD

Vendu en lots de : 1

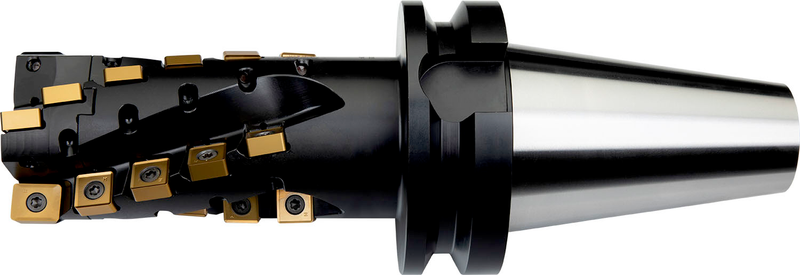

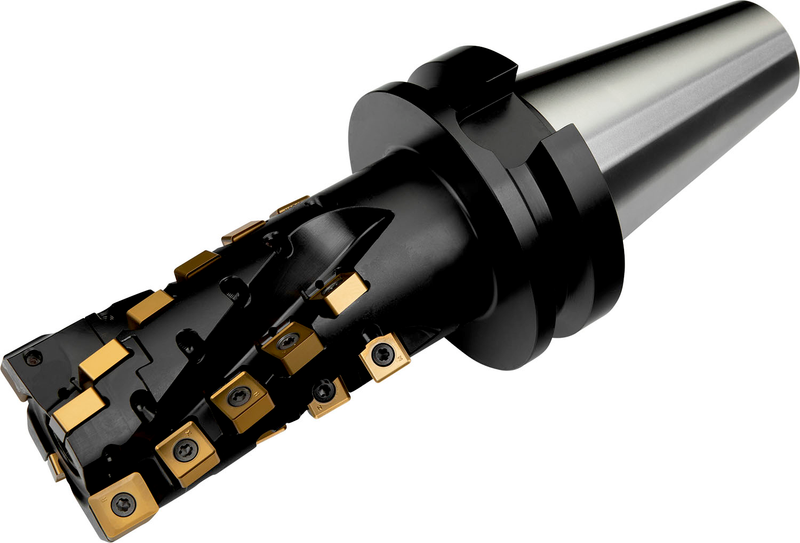

Fraise à épaulement à queue cylindrique avec géométrie double négative qui utilise 2 inserts LNET 1606 et 20 inserts SN 1305 double face, diamètre de coupe de 63 mm avec angle d'attaque de 90° et cône BT 50 selon JIS B 6339, longueur fonctionnelle de 104 mm et longueur totale de 277 mm, arrosage interne pour le surfaçage d'épaulements profonds et le fraisage de rainures profondes avec une profondeur de coupe maximale de 104 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63J2R175X50-SLSN104-C
Product Number6760427
Product FamilyJ(T)-SLSN
Insert Geometry
Depth of Cut Max — mm (APMX)104.0 mm

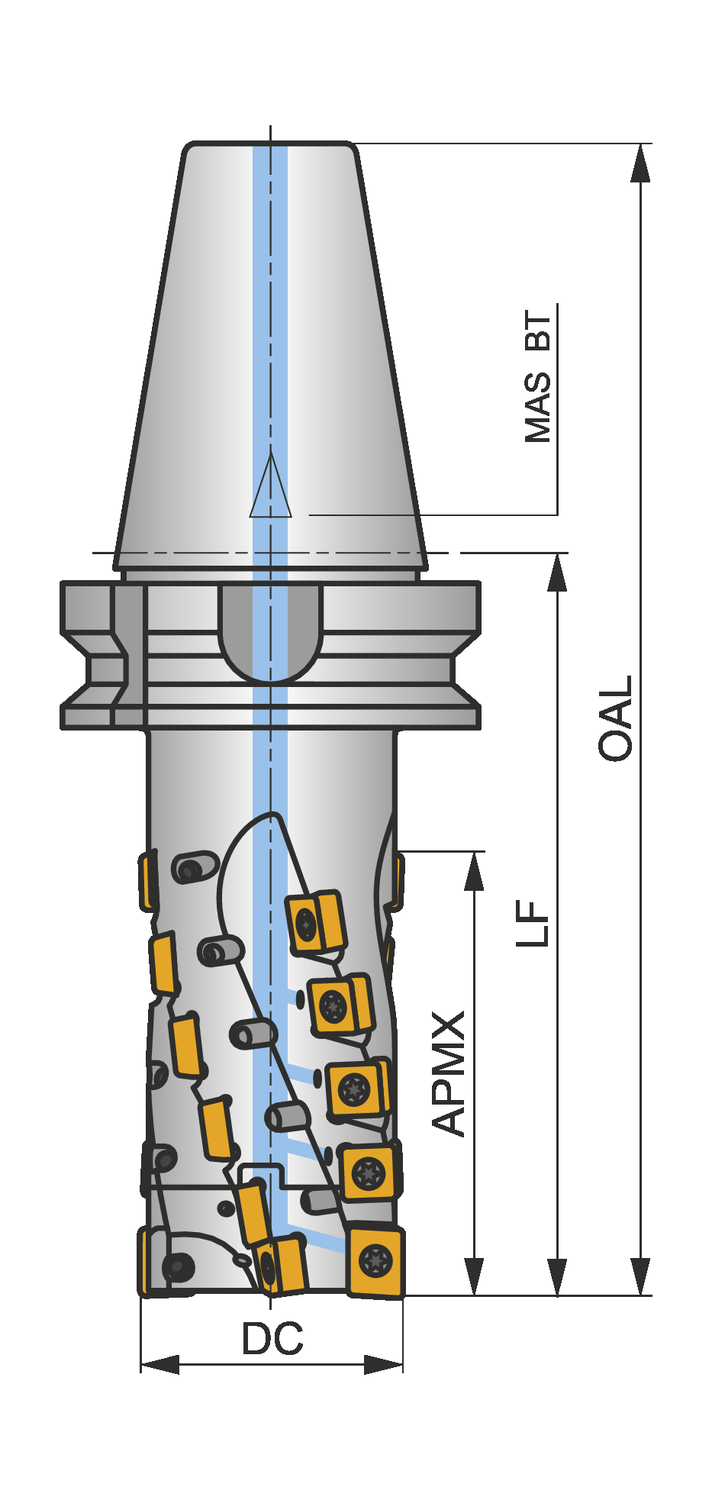

Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Overall Length — in (OAL)10.906"
Overall Length — mm (OAL)277.0 mm
Functional Length — mm (LF)175.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SLSN
ShankArbor MAS BT (JIS-B-6339)
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760427
EAN3603602957733
File Type Download
63J2R175X50-SLSN104-C — 3D Model STP Download
63J2R175X50-SLSN104-C — 2D Model DXF Download
63J2R175X50-SLSN104-C — Line Drawing PDF Download
