63J2R155H50-SLSN104-C
63J2R155H50-SLSN104-C
63J2R155H50-SLSN104-C

63J2R155H50-SLSN104-C

UGC DOR6760428
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3,710.00 CAD - $3,710.00 CAD
$3,710.00 CAD
$3,710.00 CAD - $3,710.00 CAD
$3,710.00 CAD

Vendu en lots de : 1

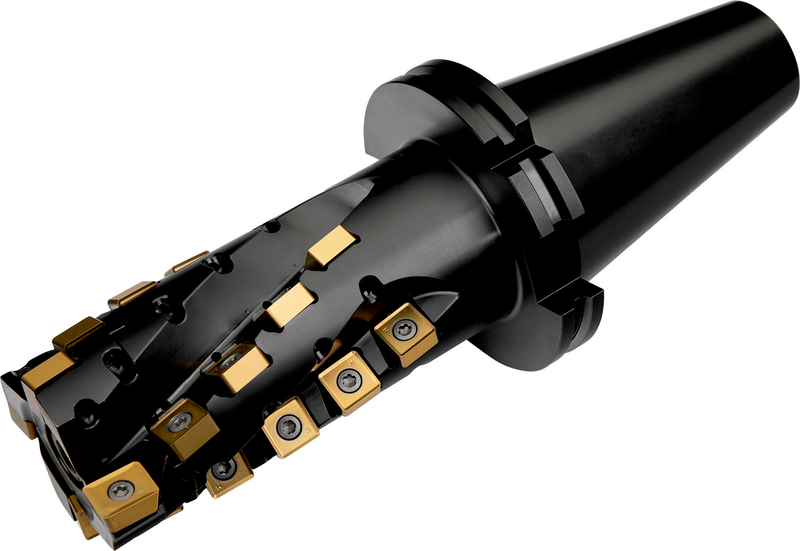

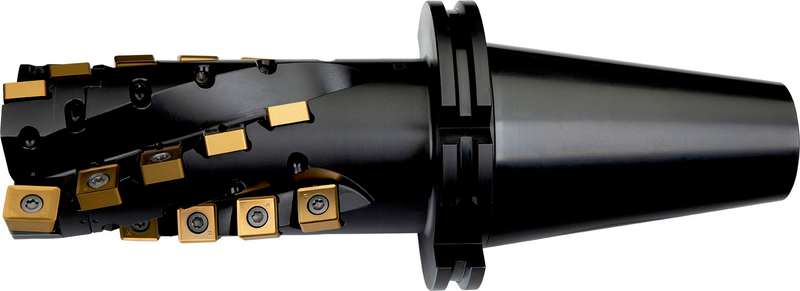

Fraise à épaulement et à coupe longue avec géométrie double négative utilisant 2 plaquettes double face LNET 1606.. et 20 SN.. 1305.., diamètre de coupe de 63 mm avec un angle d'attaque de 90° et un cône SK 50 selon ISO/DIS 7388-1, longueur fonctionnelle de 104 mm et longueur totale de 257 mm, arrosage central pour le fraisage d'épaulements profonds et de gorges profondes avec une profondeur de coupe maximale de 104 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63J2R155H50-SLSN104-C
Product Number6760428
Product FamilyJ(T)-SLSN
Insert Geometry
Depth of Cut Max — mm (APMX)104.0 mm

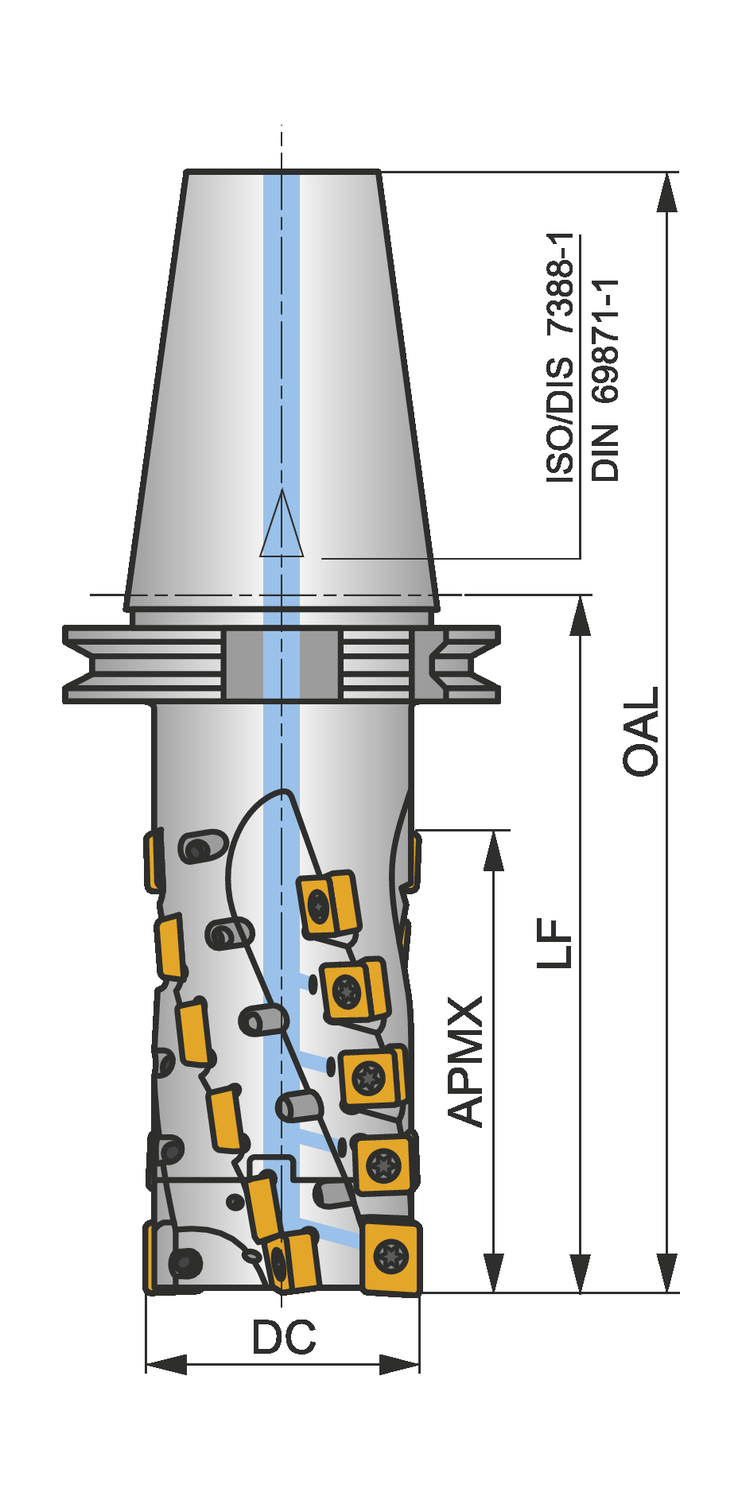

Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Overall Length — in (OAL)10.118"
Overall Length — mm (OAL)257.0 mm
Functional Length — mm (LF)155.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SLSN
ShankArbre DIN 69871-1
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760428
EAN3603602957740
File Type Download
63J2R155H50-SLSN104-C — 3D Model STP Download
63J2R155H50-SLSN104-C — 2D Model DXF Download
63J2R155H50-SLSN104-C — Line Drawing PDF Download
