63J2R155G50-SLSN104-C
63J2R155G50-SLSN104-C
63J2R155G50-SLSN104-C

63J2R155G50-SLSN104-C

UGC DOR6760429
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3,710.00 CAD - $3,710.00 CAD
$3,710.00 CAD
$3,710.00 CAD - $3,710.00 CAD
$3,710.00 CAD

Vendu en lots de : 1

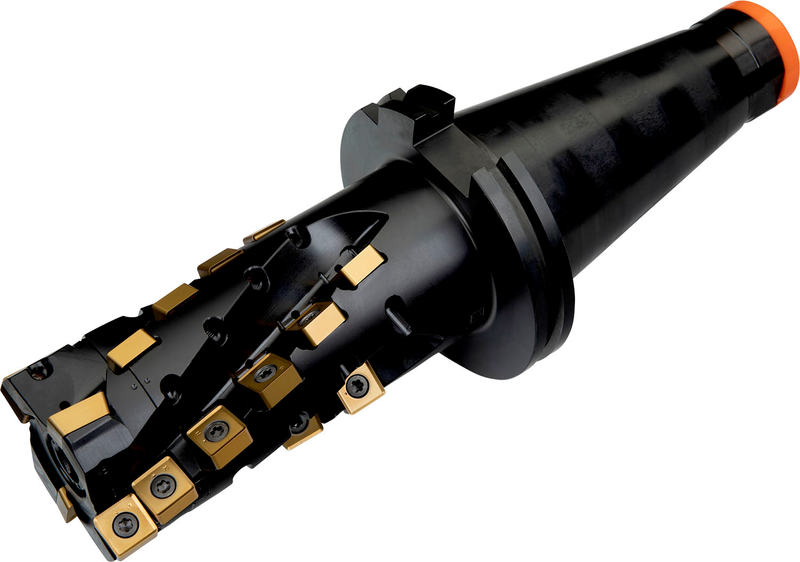

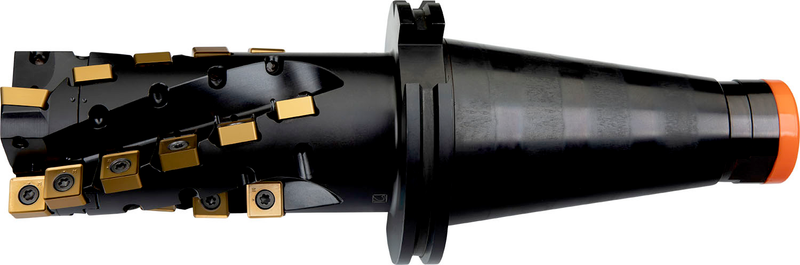

Fraise à épaule à queue longue avec géométrie double négative qui utilise 2 plaquettes double face LNET 1606.. et 20 SN.. 1305.., diamètre de coupe 63 mm avec un angle d'attaque de 90° et un cône SK 50 selon ISO 297, une longueur utile de 104 mm et une longueur totale de 282 mm, arrosage central pour le fraisage d'épaulements profonds et le fraisage de rainures profondes avec une profondeur de coupe maximale de 104 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63J2R155G50-SLSN104-C
Product Number6760429
Product FamilyJ(T)-SLSN
Insert Geometry
Depth of Cut Max — mm (APMX)104.0 mm

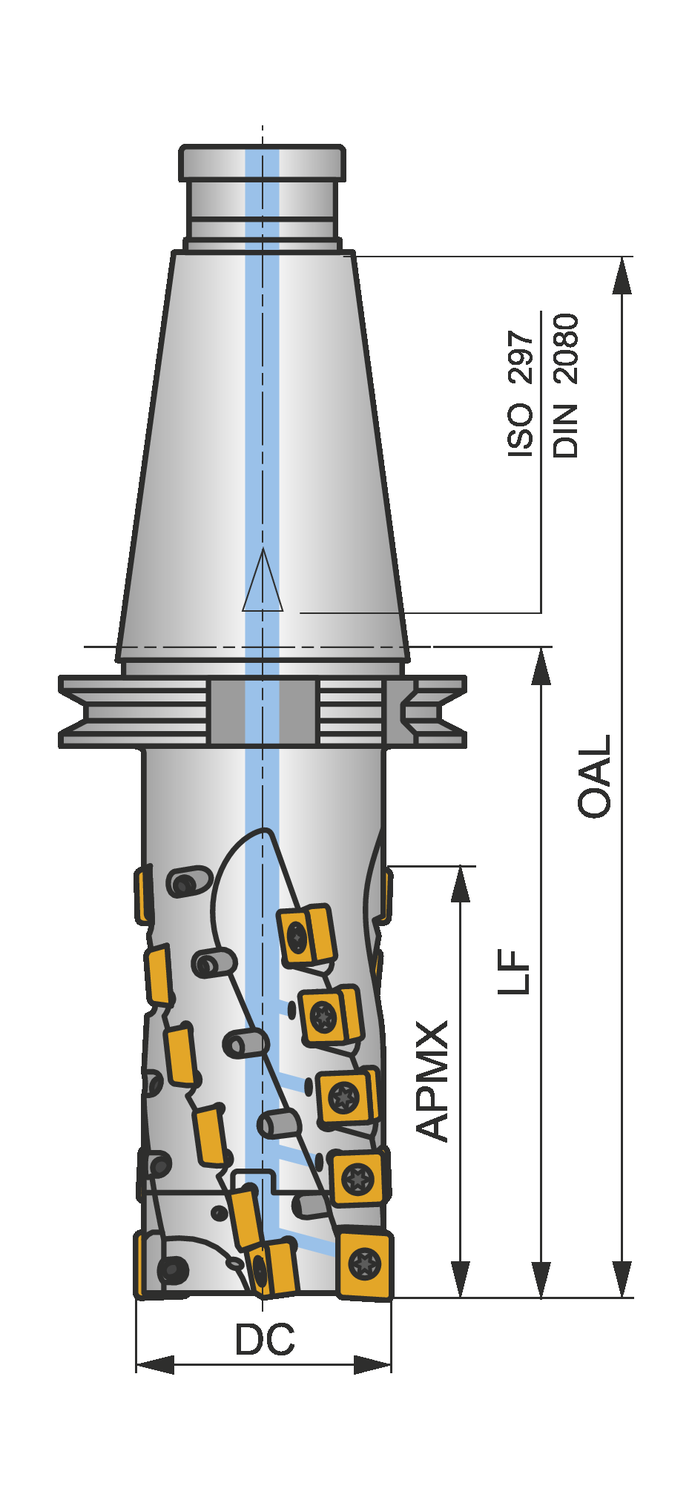

Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Overall Length — in (OAL)11.102"
Overall Length — mm (OAL)282.0 mm
Functional Length — mm (LF)155.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SLSN
ShankArbre DIN 2080-1
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760429
EAN3603602957757
File Type Download
63J2R155G50-SLSN104-C — 3D Model STP Download
63J2R155G50-SLSN104-C — 2D Model DXF Download
63J2R155G50-SLSN104-C — Line Drawing PDF Download
