80J2R190G50-SLSN134-C
80J2R190G50-SLSN134-C
80J2R190G50-SLSN134-C

80J2R190G50-SLSN134-C

UGC DOR6760430
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4,156.00 CAD - $4,156.00 CAD
$4,156.00 CAD
$4,156.00 CAD - $4,156.00 CAD
$4,156.00 CAD

Vendu en lots de : 1

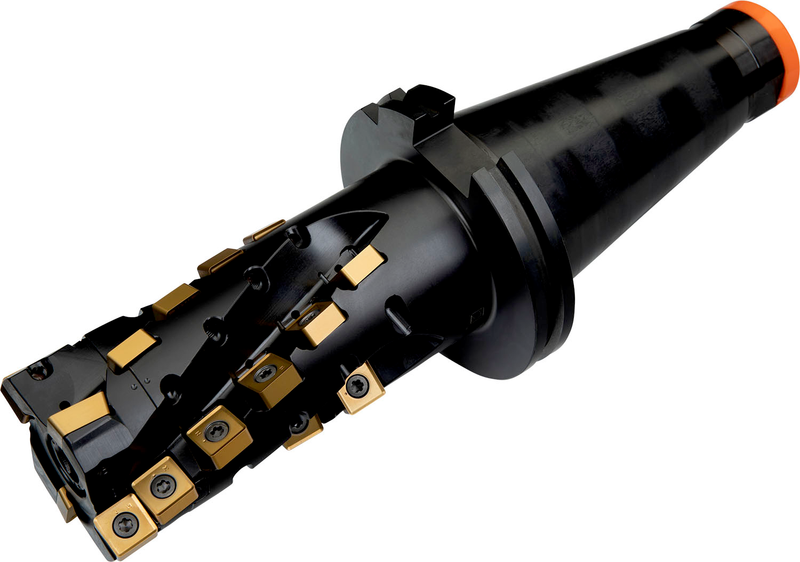

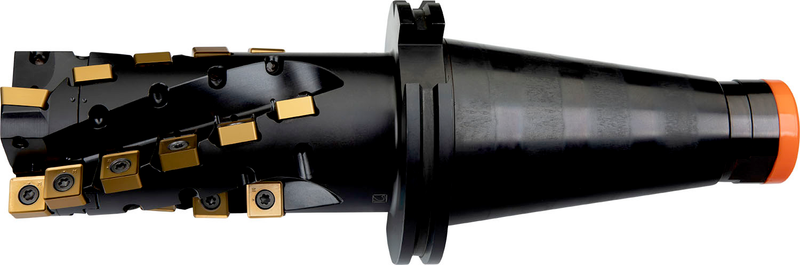

Fraise à épaulement à queue allongée avec géométrie double négative qui utilise 2 plaquettes LNET 1606.. et 26 SN.. 1305.. double face, diamètre de coupe 80 mm avec un angle d'attaque de 90° et un cône SK 50 selon ISO 297, une longueur fonctionnelle de 134 mm et une longueur totale de 317 mm, arrosage interne pour le fraisage d'épaulements profonds et le fraisage de rainures profondes avec une profondeur de coupe maximale de 134 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80J2R190G50-SLSN134-C
Product Number6760430
Product FamilyJ(T)-SLSN
Insert Geometry
Depth of Cut Max — mm (APMX)134.0 mm

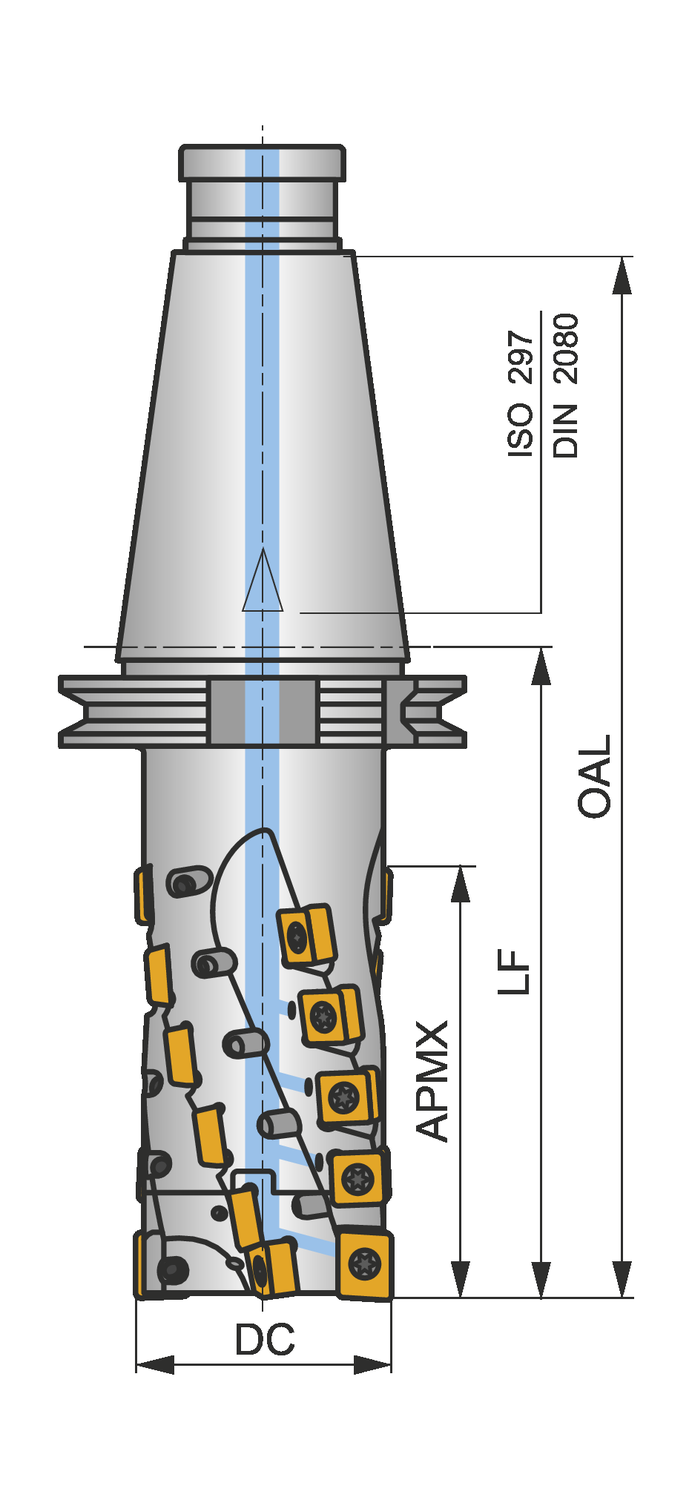

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Overall Length — in (OAL)12.48"
Overall Length — mm (OAL)317.0 mm
Functional Length — mm (LF)190.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SLSN
ShankArbre DIN 2080-1
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760430
EAN3603602957764
File Type Download
80J2R190G50-SLSN134-C — 3D Model STP Download
80J2R190G50-SLSN134-C — 2D Model DXF Download
80J2R190G50-SLSN134-C — Line Drawing PDF Download
