SVJCL 2020 K 13
SVJCL 2020 K 13
SVJCL 2020 K 13

SVJCL 2020 K 13

UGC DOR6760438
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$204.00 CAD - $204.00 CAD
$204.00 CAD
$204.00 CAD - $204.00 CAD
$204.00 CAD

Vendu en lots de : 1

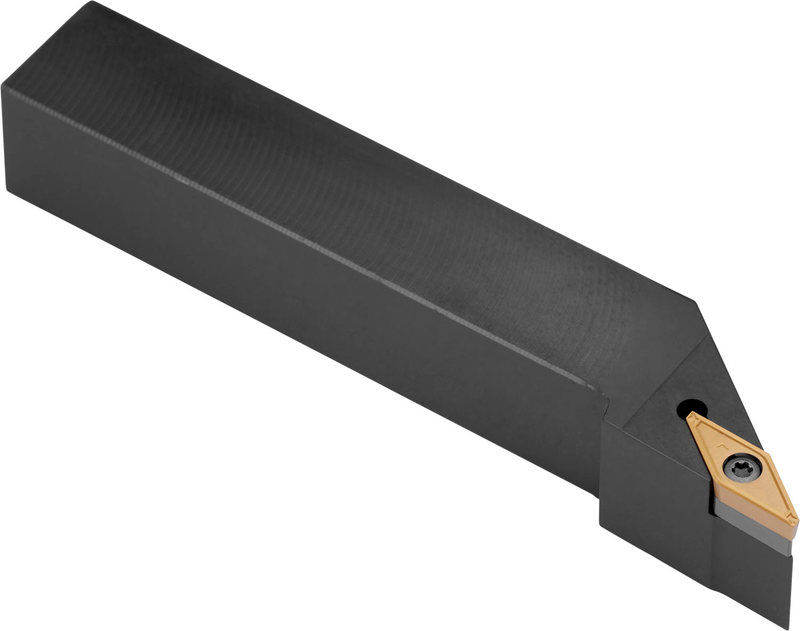

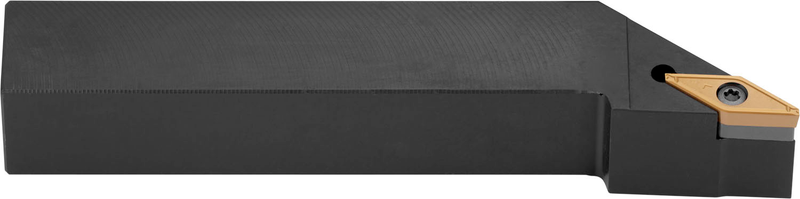

Outil de tournage à levier pour plaquette positive rhomboïde à 35° avec un cercle inscrit de 7,94 mm de diamètre, 3,18 mm d'épaisseur (désignation ISO VC.. 1303.. ), coupe latérale à 93° à gauche avec queue déportée, hauteur d'outil 20 mm x largeur 20 mm x longueur 125 mm pour le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI)SVJCL 2020 K 13
Product Name (ISO)CJUE 2020 K 13
Product Number6760438
Product FamilySVJB(C)(RL) EXT

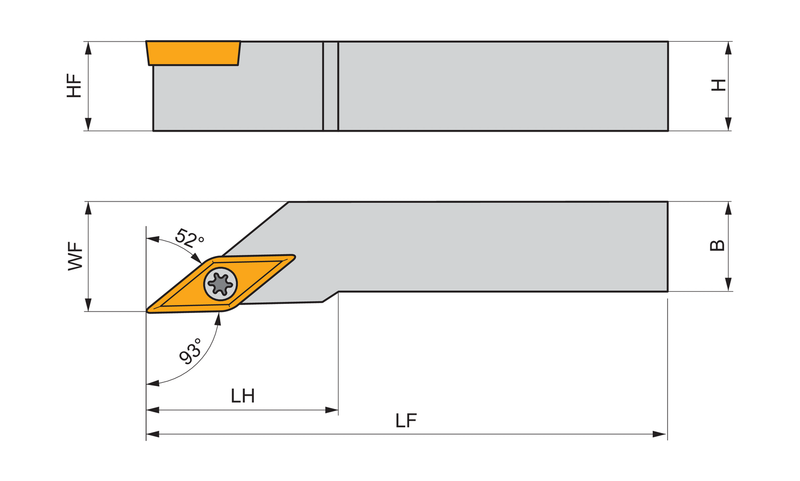

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6760438
EAN3603602957849
File Type Download
SVJCL 2020 K 13 — 3D Model STP Download
SVJCL 2020 K 13 — Line Drawing PDF Download
