SVJCR 1212 N 13
SVJCR 1212 N 13
SVJCR 1212 N 13

SVJCR 1212 N 13

UGC DOR6760440
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$186.00 CAD - $186.00 CAD
$186.00 CAD
$186.00 CAD - $186.00 CAD
$186.00 CAD

Vendu en lots de : 1

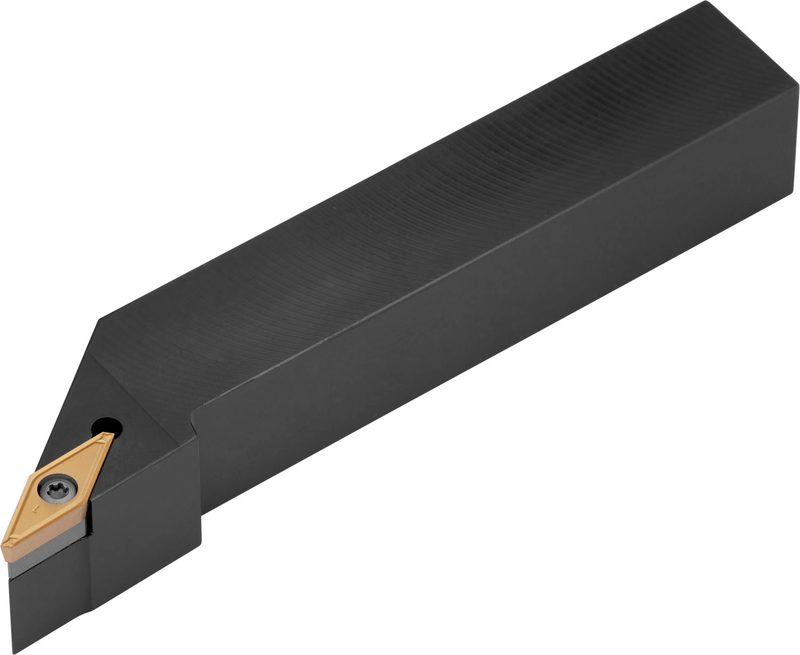

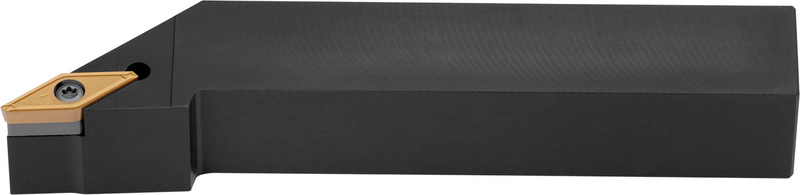

Outil de tournage à levier pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 7,94 mm, 3,18 mm d'épaisseur (désignation ISO VC.. 1303.. ), coupe latérale à 93° à droite avec queue déportée, hauteur d'outil de 12 mm x 12 mm de large x 160 mm de long pour le tournage conique, le tournage de copiage unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVJCR 1212 N 13
Product Number6760440
Product FamilySVJB(C)(RL) EXT
Dimensions
Functional Length — in (LF)6.299"
Functional Length — mm (LF)160.0 mm
Shank Height — mm (H)0.472 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6760440
EAN3603602957863
File Type Download

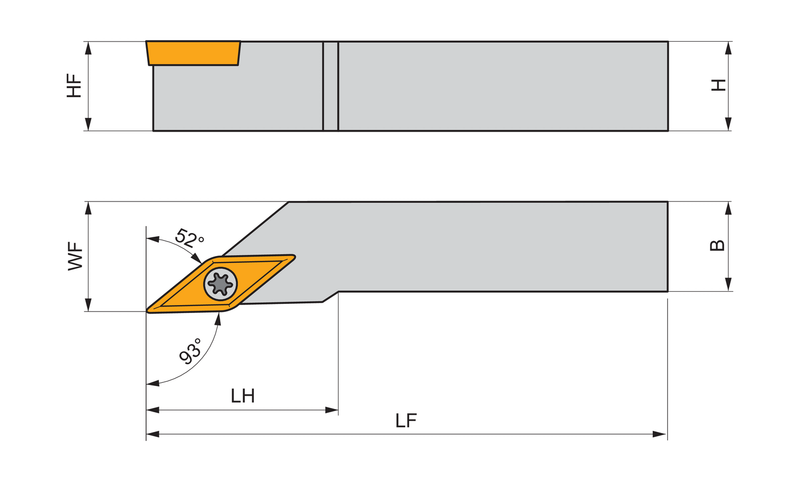

SVJCR 1212 N 13 — Line Drawing PDF Download
