SVJCR 1616 H 13
SVJCR 1616 H 13
SVJCR 1616 H 13

SVJCR 1616 H 13

UGC DOR6760441
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$186.00 CAD - $186.00 CAD
$186.00 CAD
$186.00 CAD - $186.00 CAD
$186.00 CAD

Vendu en lots de : 1

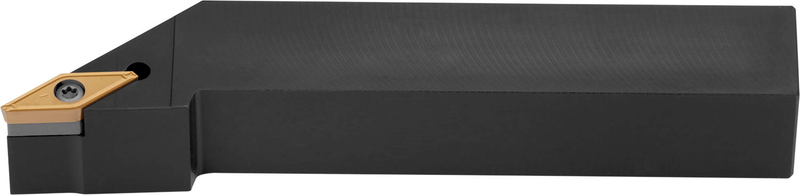

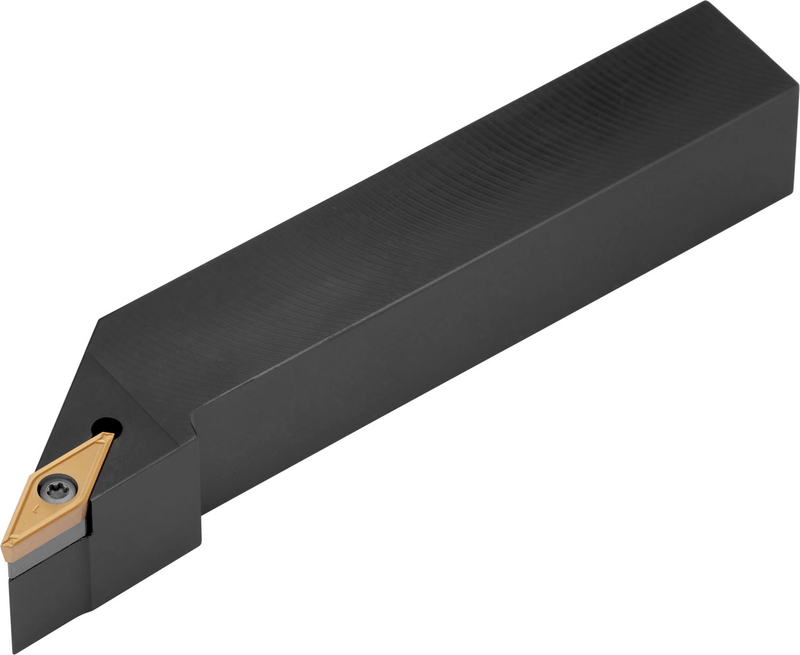

Outil de tournage à levier pour plaquettes positives rhomboïdes 35° avec un diamètre de cercle inscrit de 7,94 mm, épaisseur de 3,18 mm (désignation ISO VC.. 1303.. ), coupe à droite 93° avec un corps déporté, hauteur d'outil de 16 mm x largeur de 16 mm x 100 mm de long pour le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVJCR 1616 H 13
Product Number6760441
Product FamilySVJB(C)(RL) EXT
Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Shank Height — mm (H)0.63 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6760441
EAN3603602957870
File Type Download

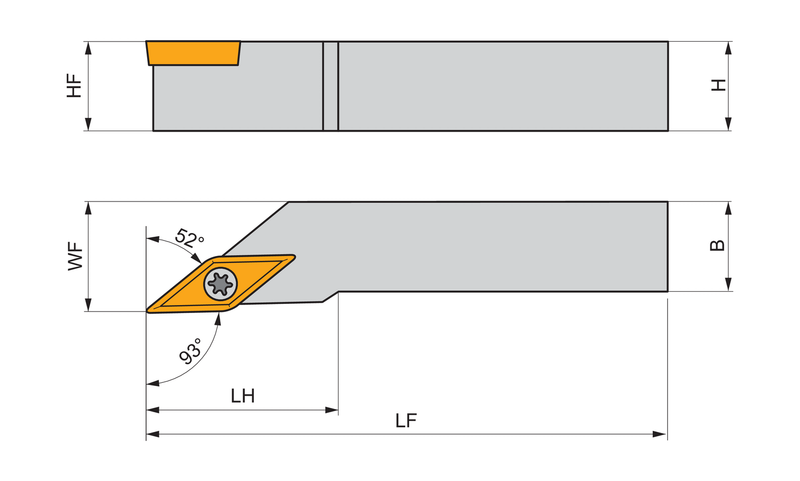

SVJCR 1616 H 13 — Line Drawing PDF Download
