SVVCN 1616 H 13
SVVCN 1616 H 13
SVVCN 1616 H 13

SVVCN 1616 H 13

UGC DOR6760445
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$186.00 CAD - $186.00 CAD
$186.00 CAD
$186.00 CAD - $186.00 CAD
$186.00 CAD

Vendu en lots de : 1

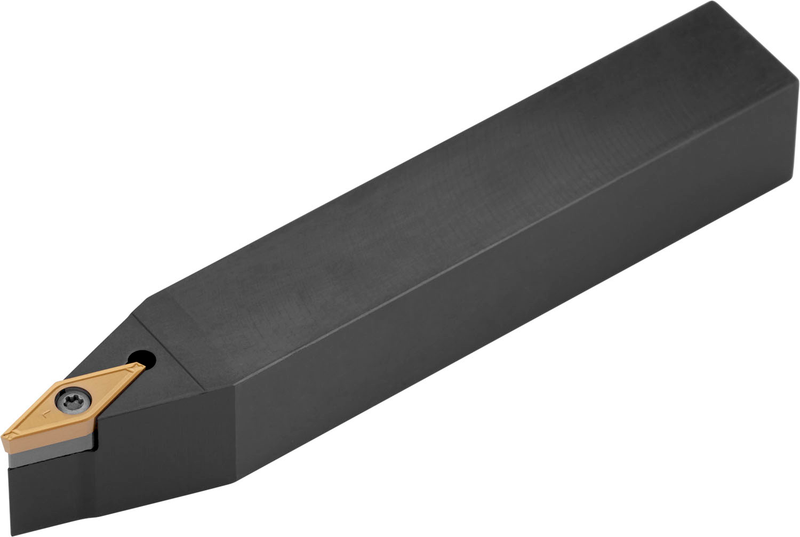

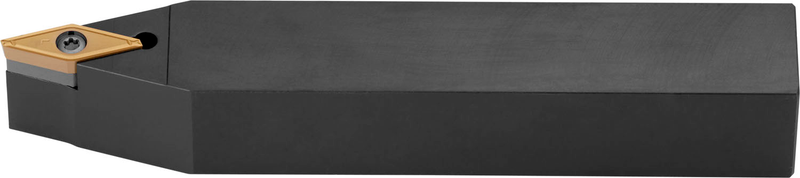

Outil de tournage à levier pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 7,94 mm, 3,18 mm d'épaisseur (désignation ISO VC.. 1303.. ), main neutre, coupe latérale à 72°30' avec queue droite, hauteur d'outil de 16 mm x largeur de 16 mm x 100 mm de long pour le tournage conique, le copiage monodirectionnel et multidirectionnel et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVVCN 1616 H 13
Product Number6760445
Product FamilySVVB(C)N EXT
Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Shank Height — mm (H)0.63 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6760445
EAN3603602957917
File Type Download

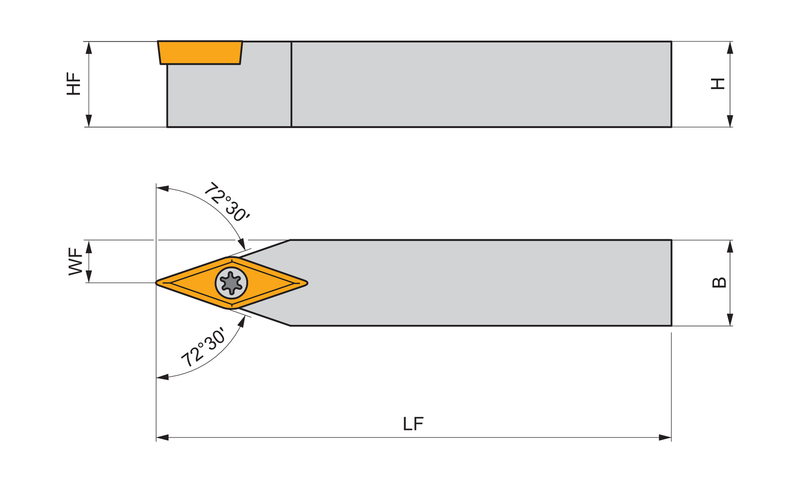

SVVCN 1616 H 13 — Line Drawing PDF Download
