SVVCN 2020 K 13
SVVCN 2020 K 13
SVVCN 2020 K 13

SVVCN 2020 K 13

UGC DOR6760446
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$204.00 CAD - $204.00 CAD
$204.00 CAD
$204.00 CAD - $204.00 CAD
$204.00 CAD

Vendu en lots de : 1

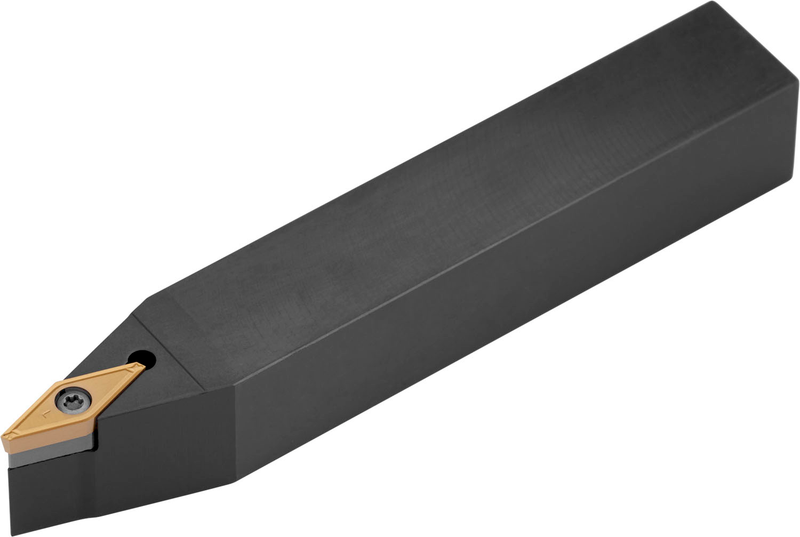

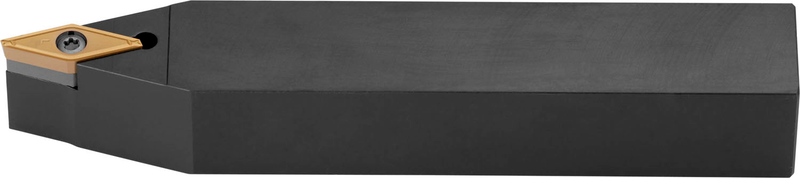

Outil de tournage à levier pour le maintien d'un insert positif en forme de losange à 35° avec un diamètre de cercle inscrit de 7,94mm, 3,18mm d'épaisseur (désignation ISO VC.. 1303..), coupe latérale à 72°30' à main neutre avec tige droite, hauteur d'outil de 20mm x largeur de 20mm x 125mm de long pour le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVVCN 2020 K 13
Product Number6760446
Product FamilySVVB(C)N EXT
Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6760446
EAN3603602957924
File Type Download

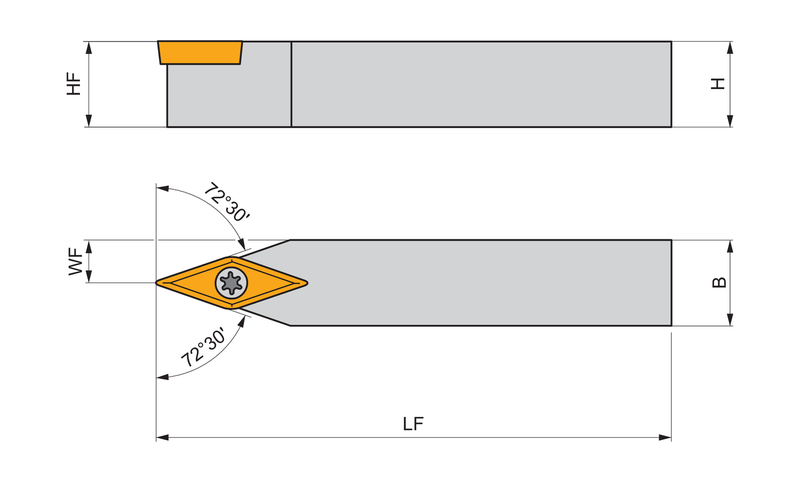

SVVCN 2020 K 13 — Line Drawing PDF Download
