SVVCN 2525 M 13
SVVCN 2525 M 13
SVVCN 2525 M 13

SVVCN 2525 M 13

UGC DOR6760447
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$208.00 CAD - $208.00 CAD
$208.00 CAD
$208.00 CAD - $208.00 CAD
$208.00 CAD

Vendu en lots de : 1

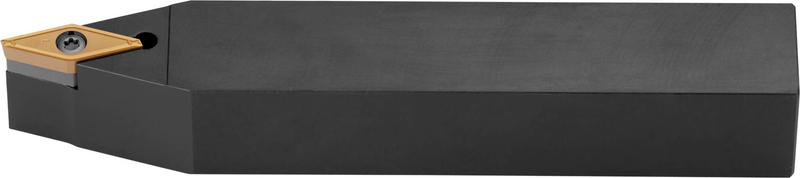

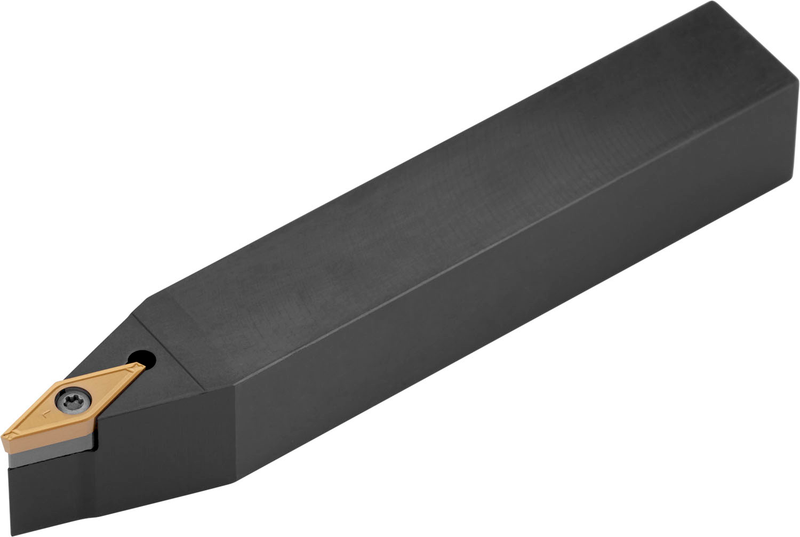

Outil de tournage à levier pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 7,94 mm, une épaisseur de 3,18 mm (désignation ISO VC.. 1303.. ), main neutre, coupe latérale à 72°30' avec queue droite, hauteur d'outil de 25 mm x largeur de 25 mm x longueur de 150 mm pour le tournage conique, le copiage monodirectionnel et multidirectionnel et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVVCN 2525 M 13
Product Number6760447
Product FamilySVVB(C)N EXT
Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6760447
EAN3603602957931
File Type Download

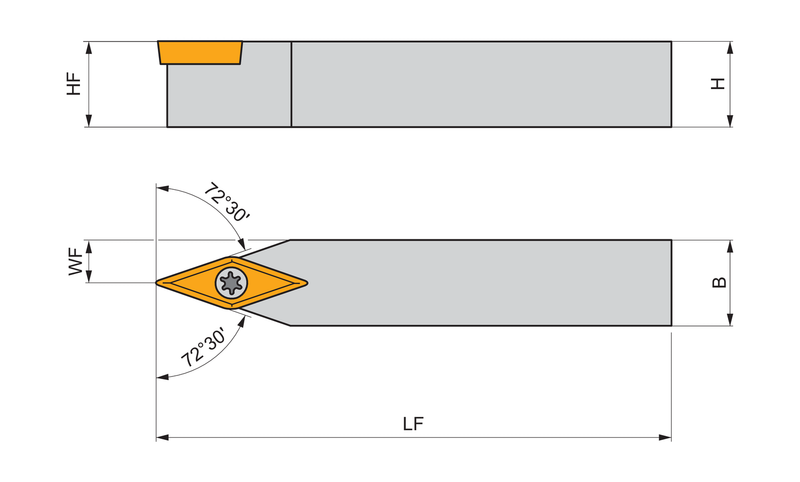

SVVCN 2525 M 13 — Line Drawing PDF Download
