SVXCR 2020 K 13
SVXCR 2020 K 13
SVXCR 2020 K 13

SVXCR 2020 K 13

UGC DOR6760449
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$204.00 CAD - $204.00 CAD
$204.00 CAD
$204.00 CAD - $204.00 CAD
$204.00 CAD

Vendu en lots de : 1

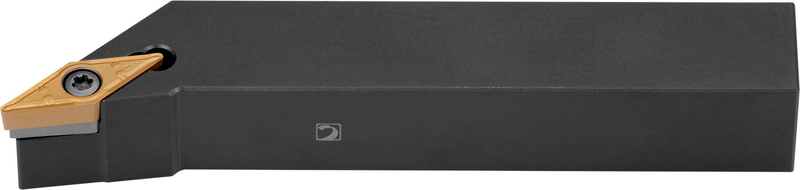

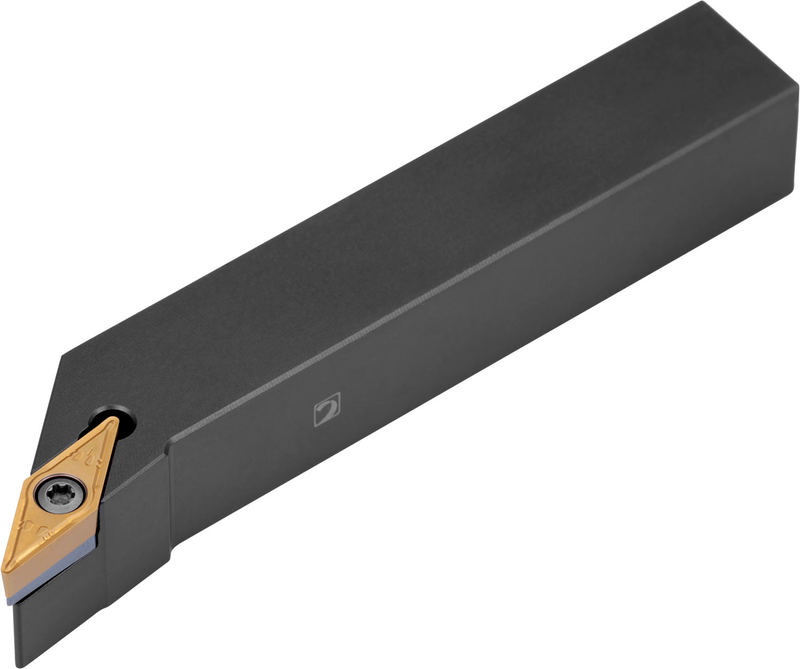

Outil de tournage à levier pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 7,94 mm, 3,18 mm d'épaisseur (désignation ISO VC.. 1303..), outil spécial droit, 20 mm de hauteur x 20 mm de largeur x 125 mm de longueur pour le tournage conique, le chariotage à copier unidirectionnel et multidirectionnel et le chariotage avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVXCR 2020 K 13
Product Number6760449
Product FamilySVXB(C)(RL) EXT

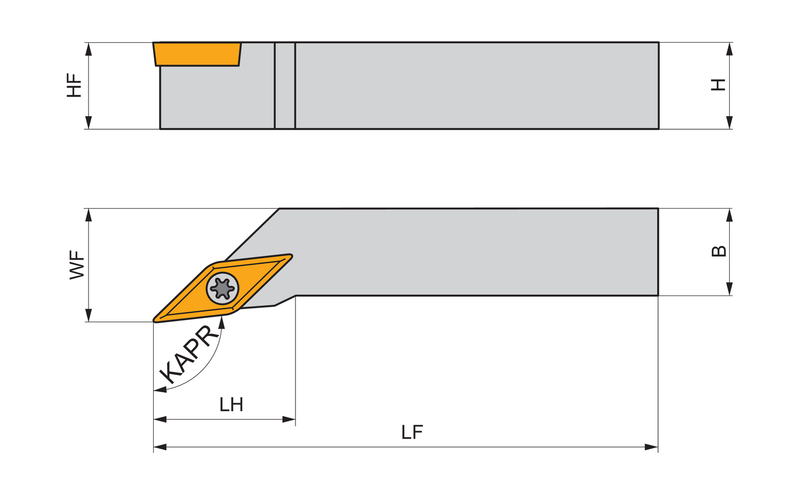

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6760449
EAN3603602957955
File Type Download
SVXCR 2020 K 13 — 3D Model STP Download
SVXCR 2020 K 13 — Line Drawing PDF Download
