S16R-SEUCR 08
S16R-SEUCR 08
S16R-SEUCR 08

S16R-SEUCR 08

UGC DOR6760459
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.00 CAD - $197.00 CAD
$197.00 CAD
$197.00 CAD - $197.00 CAD
$197.00 CAD

Vendu en lots de : 1

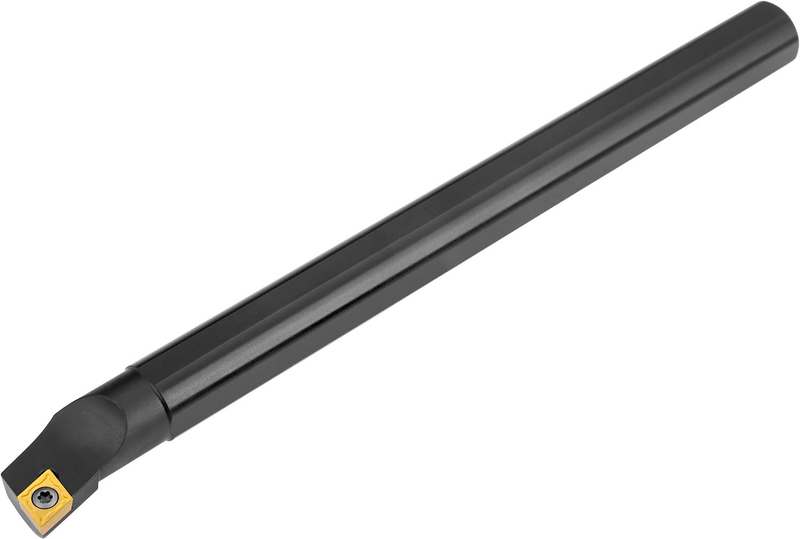

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 75° avec cercle inscrit de 7,94 mm de diamètre, 3,18 mm d'épaisseur (désignation ISO EC.. 0803.. ), coupe à droite 93° avec queue déportée, acier sans trou de lubrification, 16 mm de diamètre x 200 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S16R-SEUCR 08
Product Number6760459
Product FamilySEUC(RL) INT

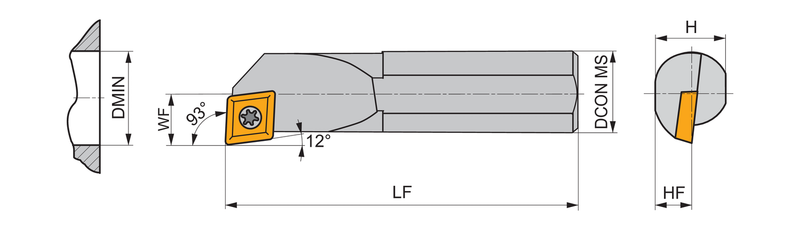

Dimensions
Functional Length — in (LF)7.874"
Functional Length — mm (LF)200.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)0.591 mm
Min. Bore Dia. — in (DMIN)0.787"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6760459
EAN3603602958051
File Type Download
S16R-SEUCR 08 — Line Drawing PDF Download
