S0608H-SEXPL 05
S0608H-SEXPL 05

S0608H-SEXPL 05

UGC DOR6760464
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.00 CAD - $197.00 CAD
$197.00 CAD
$197.00 CAD - $197.00 CAD
$197.00 CAD

Vendu en lots de : 1

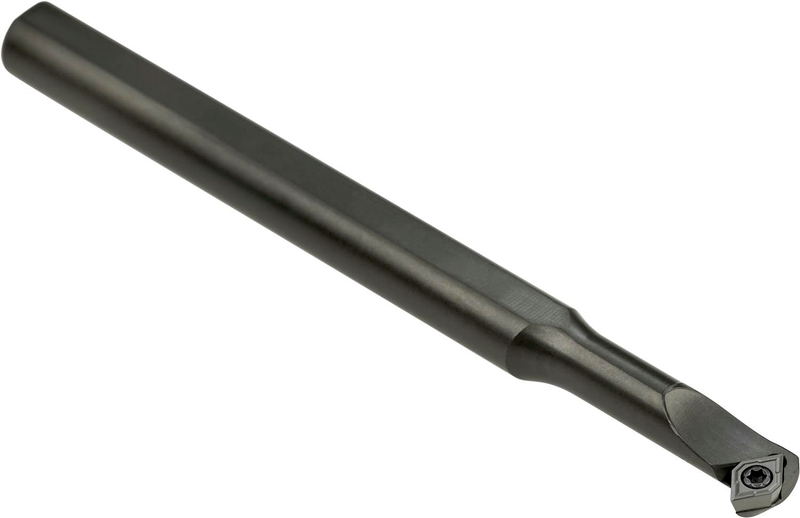

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde à 75° avec cercle inscrit de 5,56 mm de diamètre et de 2,38 mm d'épaisseur (désignation ISO EP.. 0502..), outil spécial à gauche, acier sans trou de liquide de coupe, 6 mm de diamètre x 100 mm de long pour alésage conique, alésage de copie unidirectionnel et multidirectionnel et chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S0608H-SEXPL 05
Product Number6760464
Product FamilySEXP(RL) INT
Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Min. Bore Dia. — in (DMIN)0.374"
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6760464
EAN3603602958105
File Type Download

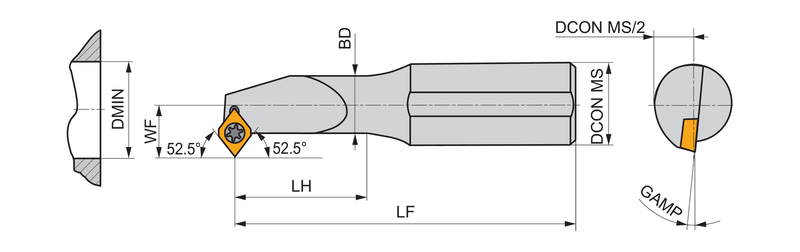

S0608H-SEXPL 05 — Line Drawing PDF Download
