S1012K-SEXPL 05
S1012K-SEXPL 05

S1012K-SEXPL 05

UGC DOR6760471
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.00 CAD - $197.00 CAD
$197.00 CAD
$197.00 CAD - $197.00 CAD
$197.00 CAD

Vendu en lots de : 1

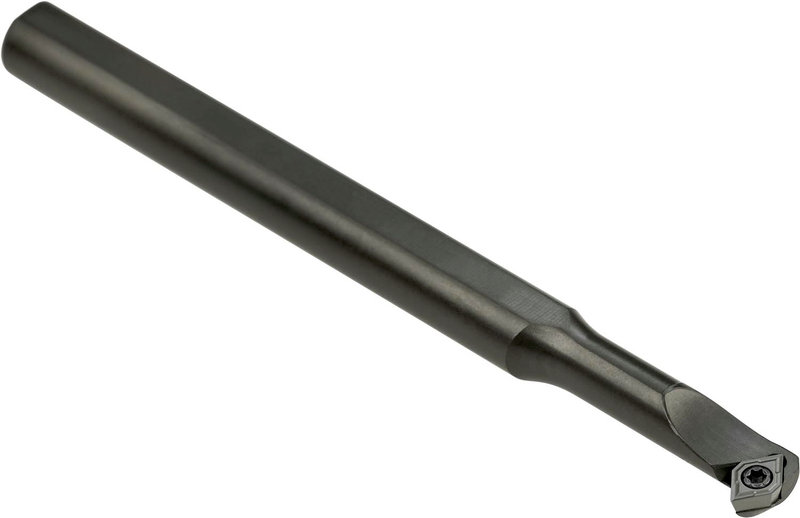

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 75° avec un diamètre de cercle inscrit de 5,56 mm, 2,38 mm d'épaisseur (désignation ISO EP.. 0502..), outil spécial main gauche, en acier sans trou de lubrification, diamètre 10 mm x 125 mm de long pour l'alésage conique, l'alésage de forme unidirectionnel et multidirectionnel et le chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1012K-SEXPL 05
Product Number6760471
Product FamilySEXP(RL) INT
Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Min. Bore Dia. — in (DMIN)0.512"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6760471
EAN3603602958174
File Type Download

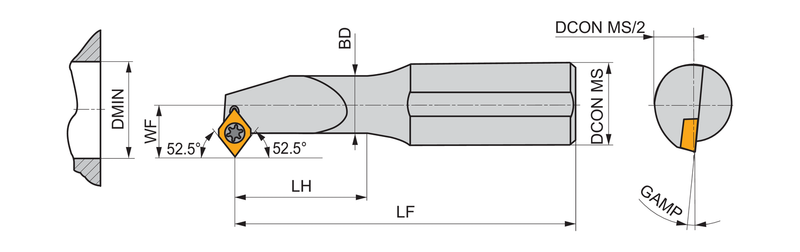

S1012K-SEXPL 05 — Line Drawing PDF Download
