S1216M-SEXPL 05
S1216M-SEXPL 05

S1216M-SEXPL 05

UGC DOR6760475
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.00 CAD - $197.00 CAD
$197.00 CAD
$197.00 CAD - $197.00 CAD
$197.00 CAD

Vendu en lots de : 1

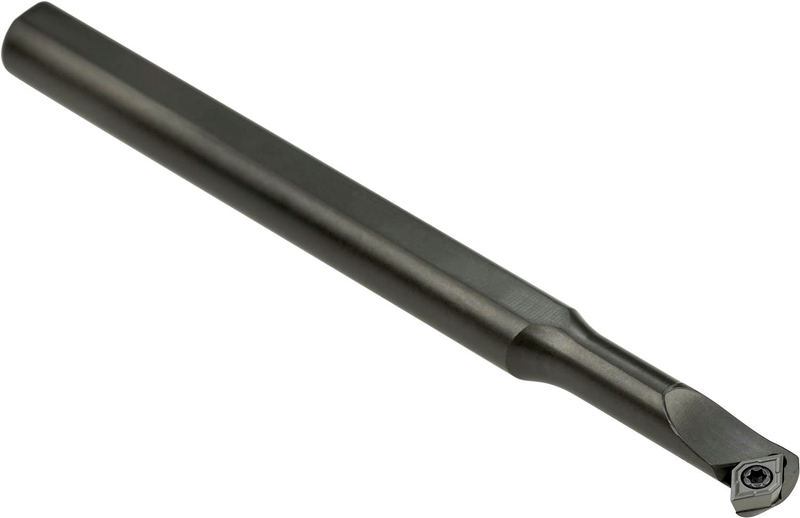

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 75° avec un diamètre de cercle inscrit de 5,56 mm, épaisseur de 2,38 mm (désignation ISO EP.. 0502.. ), style d'outil spécial à gauche, en acier sans trou d'arrosage, diamètre 12 mm x 150 mm de long pour alésage conique, alésage de reproduction unidirectionnel et multidirectionnel et chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1216M-SEXPL 05
Product Number6760475
Product FamilySEXP(RL) INT
Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Min. Bore Dia. — in (DMIN)0.63"
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6760475
EAN3603602958211
File Type Download

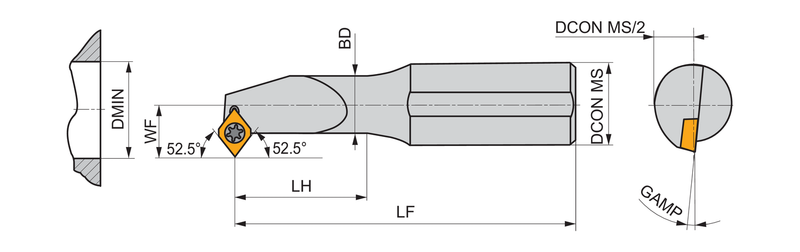

S1216M-SEXPL 05 — Line Drawing PDF Download
