E0810J-SELPR 05
E0810J-SELPR 05
E0810J-SELPR 05

E0810J-SELPR 05

UGC DOR6760480
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$747.00 CAD - $747.00 CAD
$747.00 CAD
$747.00 CAD - $747.00 CAD
$747.00 CAD

Vendu en lots de : 1

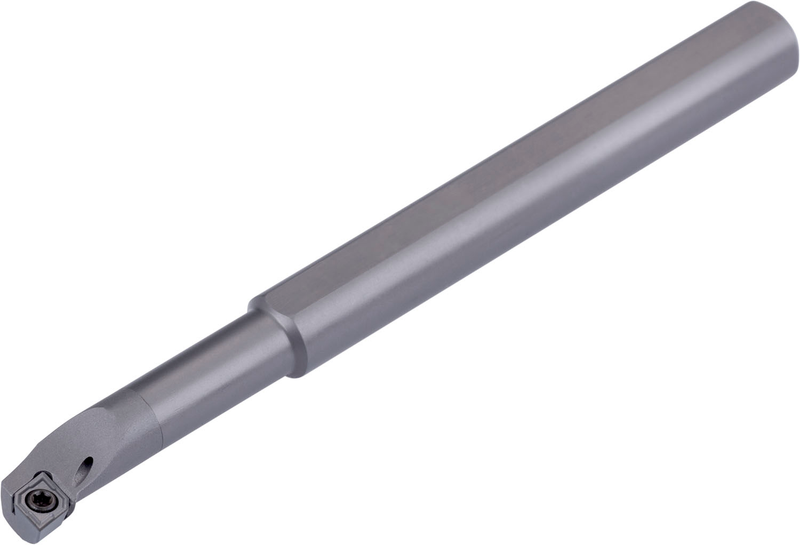

Barre d'alésage à serrage par vis pour plaquette positive rhomboïde 75° avec un diamètre de cercle inscrit de 5,56 mm, épaisseur 2,38 mm (désignation ISO EP.. 0502..), coupe à droite 95° frontale et latérale avec queue déportée, en carbure avec trou d'arrosage, diamètre 8 mm x 110 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0810J-SELPR 05
Product Number6760480
Product FamilySELP(RL)-E INT
Dimensions
Functional Length — in (LF)4.331"
Functional Length — mm (LF)110.0 mm
Connection Dia. — in (DCON)0.394"
Connection Dia. — mm (DCON)10.0 mm
Min. Bore Dia. — in (DMIN)0.433"
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760480
EAN3603602958266
File Type Download

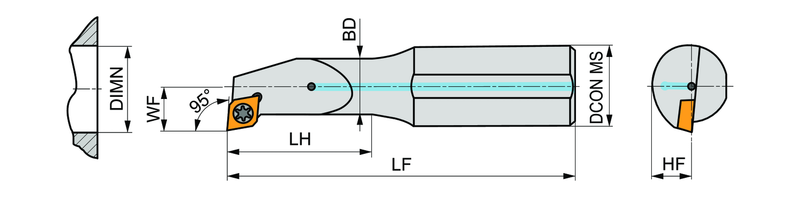

E0810J-SELPR 05 — Line Drawing PDF Download
