E06H-STFCR 06-R

E06H-STFCR 06-R

UGC DOR6760495
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$354.00 CAD - $354.00 CAD
$354.00 CAD
$354.00 CAD - $354.00 CAD
$354.00 CAD

Vendu en lots de : 1

Barre d’alésage à bride vissée pour plaquette triangulaire positive avec un diamètre de cercle inscrit de 3,97 mm, 1,98 mm d'épaisseur (désignation ISO TC.. 06T1.. ), coupe à droite 90° avec queue coudée, en carbure avec trou d’arrosage, diamètre 6 mm x 100 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E06H-STFCR 06-R
Product Number6760495
Product FamilySTFC(RL)-E INT

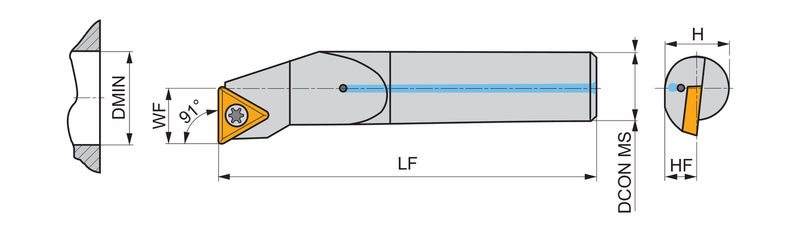

Dimensions
Functional Length — in (LF)3.937"
Connection Dia. — in (DCON)0.236"
Shank Height — mm (H)0.236 mm
Min. Bore Dia. — in (DMIN)0.335"
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760495
EAN3603602958419
