S0608H-SWUCR 02
S0608H-SWUCR 02
S0608H-SWUCR 02

S0608H-SWUCR 02

UGC DOR6760585
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.00 CAD - $197.00 CAD
$197.00 CAD
$197.00 CAD - $197.00 CAD
$197.00 CAD

Vendu en lots de : 1

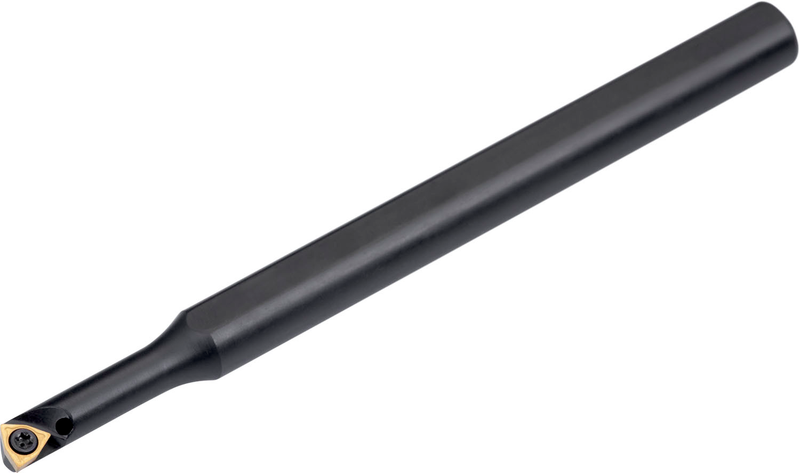

Porte-barre d'alésage à serrage par vis pour plaquette positive trigon 80° avec un cercle inscrit de 3,97mm de diamètre, 1,59mm d'épaisseur (désignation ISO WC.. 0201.. ), coupe à droite 93° avec queue déportée, en acier sans trou de lubrification, 6mm de diamètre x 100mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S0608H-SWUCR 02
Product Number6760585
Product FamilySWUC(RL) INT

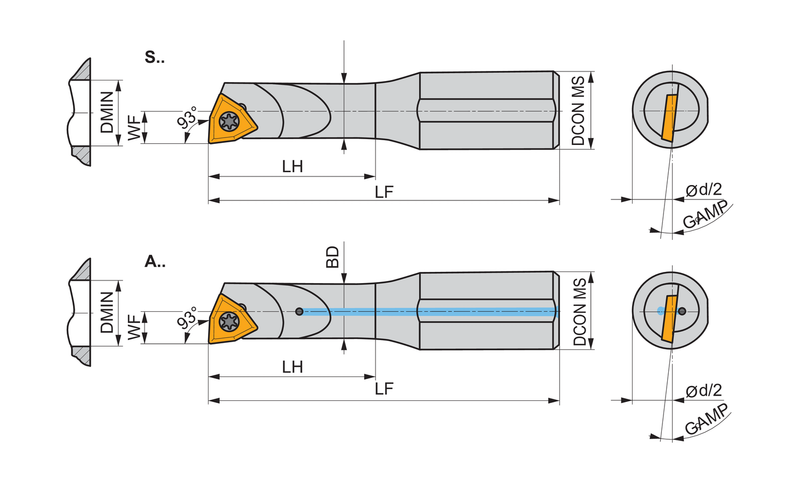

Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Min. Bore Dia. — in (DMIN)0.307"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6760585
EAN3603602959317
File Type Download
S0608H-SWUCR 02 — Line Drawing PDF Download
