E0508H-SWUCR 02
E0508H-SWUCR 02
E0508H-SWUCR 02

E0508H-SWUCR 02

UGC DOR6760587
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$663.00 CAD - $663.00 CAD
$663.00 CAD
$663.00 CAD - $663.00 CAD
$663.00 CAD

Vendu en lots de : 1

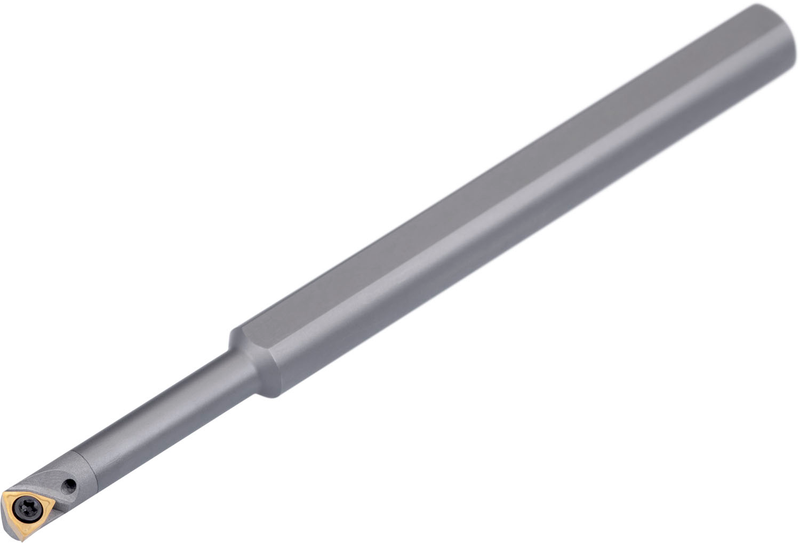

Barre d'alésage à bridage par vis pour plaquette positive trigon 80° avec un diamètre de cercle inscrit de 3,97 mm, 1,59 mm d'épaisseur (désignation ISO WC.. 0201.. ), coupe à droite 93° avec queue déportée, carbure avec trou d'arrosage, 5 mm de diamètre x 100 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0508H-SWUCR 02
Product Number6760587
Product FamilySWUC(RL)-F INT

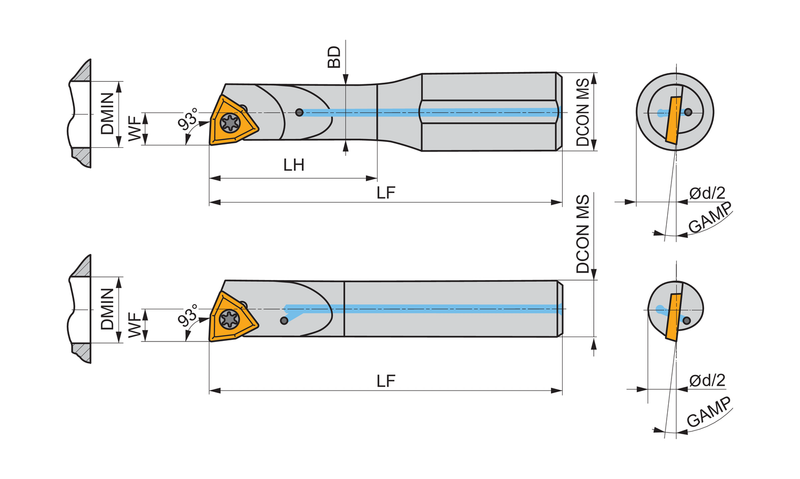

Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Min. Bore Dia. — in (DMIN)0.228"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760587
EAN3603602959331
File Type Download
E0508H-SWUCR 02 — Line Drawing PDF Download
