E0608H-SWUCR 02
E0608H-SWUCR 02
E0608H-SWUCR 02

E0608H-SWUCR 02

UGC DOR6760589
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$663.00 CAD - $663.00 CAD
$663.00 CAD
$663.00 CAD - $663.00 CAD
$663.00 CAD

Vendu en lots de : 1

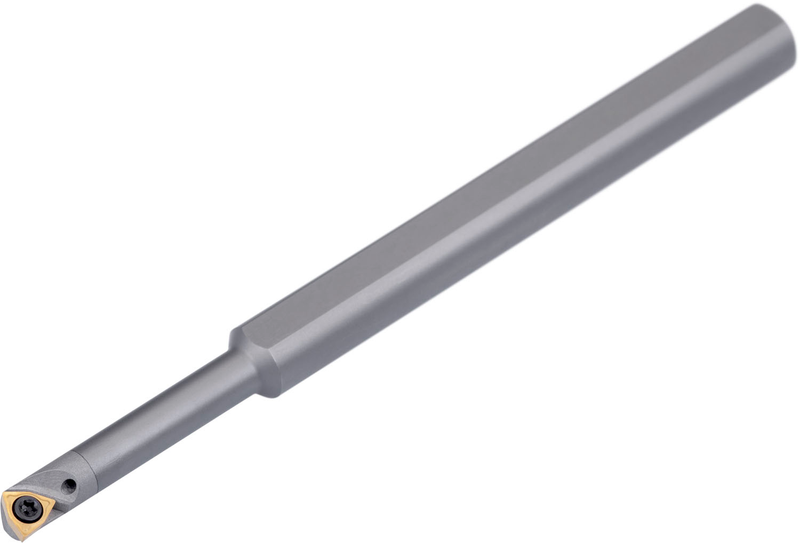

Barre d'alésage à vis pour plaquette triangulaire positive 80° avec un diamètre de cercle inscrit de 3,97mm, épaisseur de 1,59mm (désignation ISO WC.. 0201.. ), coupe à droite 93° avec tige déportée, en carbure avec trou d'arrosage, diamètre 6mm x 100mm de long pour l'alésage conique et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0608H-SWUCR 02
Product Number6760589
Product FamilyUC(RL)-E INT
Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Min. Bore Dia. — in (DMIN)0.307"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760589
EAN3603602959355
File Type Download

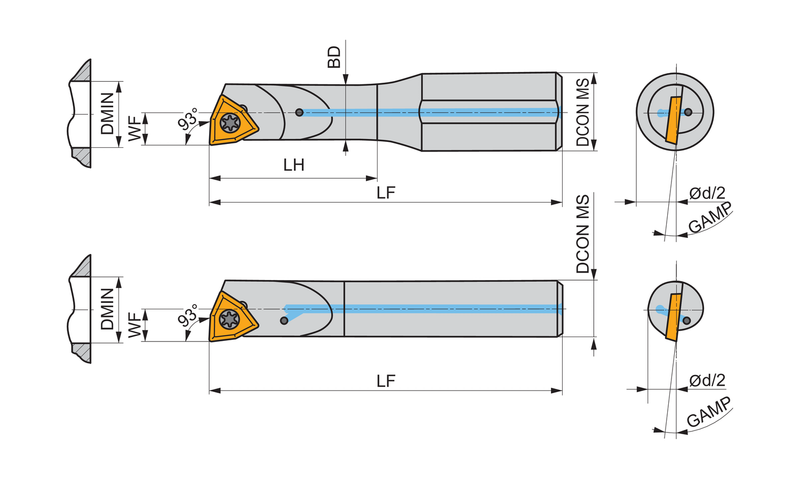

E0608H-SWUCR 02 — Line Drawing PDF Download
