E05F-SWUCR 02
E05F-SWUCR 02
E05F-SWUCR 02

E05F-SWUCR 02

UGC DOR6760591
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$586.00 CAD - $586.00 CAD
$586.00 CAD
$586.00 CAD - $586.00 CAD
$586.00 CAD

Vendu en lots de : 1

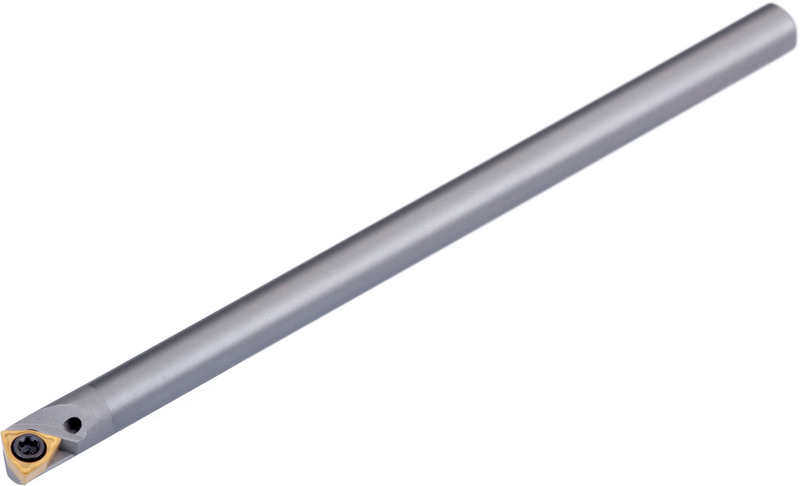

Porte-outil à alésage à vis pour plaquette triangulaire positive à 80° avec un cercle inscrit de 3,97 mm de diamètre, 1,59 mm d'épaisseur (désignation ISO WC.. 0201.. ), coupe à droite à 93° avec queue décalée, carbure avec trou de liquide de refroidissement, 5 mm de diamètre x 80 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E05F-SWUCR 02
Product Number6760591
Product FamilySWUC(RL)-E INT

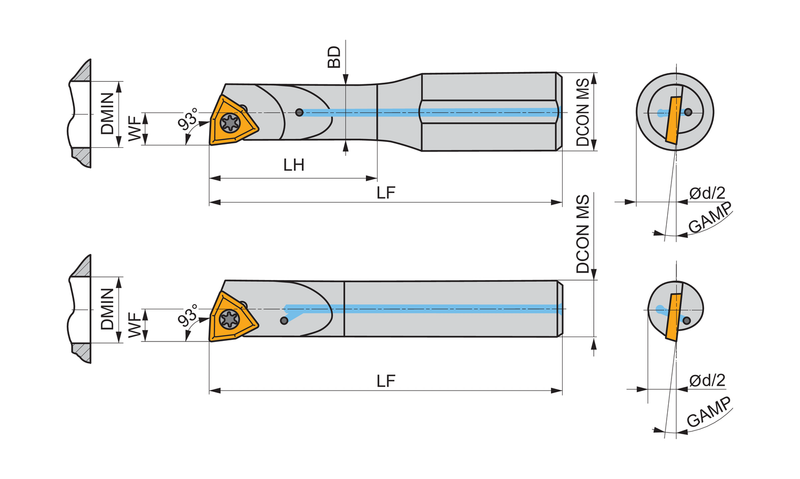

Dimensions
Functional Length — in (LF)3.346"
Functional Length — mm (LF)85.0 mm
Connection Dia. — in (DCON)0.197"
Connection Dia. — mm (DCON)5.0 mm
Min. Bore Dia. — in (DMIN)0.228"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760591
EAN3603602959379
File Type Download
E05F-SWUCR 02 — Line Drawing PDF Download
