E06G-SWUCL 02
E06G-SWUCL 02
E06G-SWUCL 02

E06G-SWUCL 02

UGC DOR6760594
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$586.00 CAD - $586.00 CAD
$586.00 CAD
$586.00 CAD - $586.00 CAD
$586.00 CAD

Vendu en lots de : 1

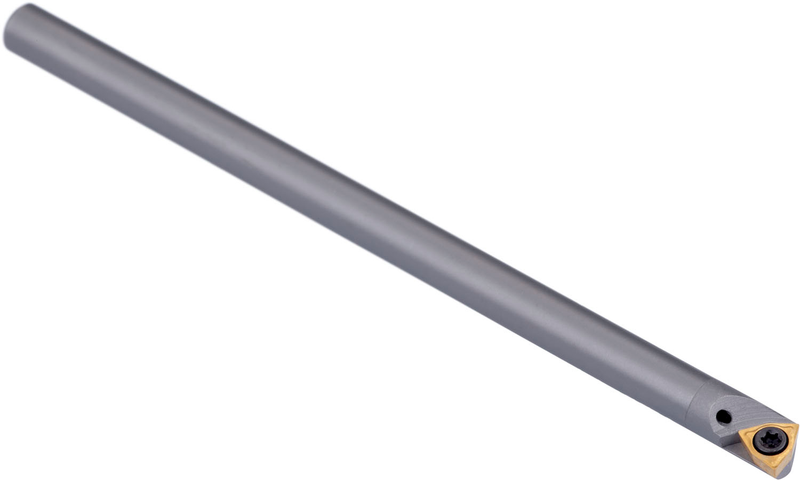

Barre d'alésage à bridage par vis pour plaquette positive trigon 80° avec un cercle inscrit de 3,97mm de diamètre, 1,59mm d'épaisseur (désignation ISO WC.. 0201.. ), coupe à gauche 93° avec queue déportée, en carbure avec trou d'arrosage, 6mm de diamètre x 90mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E06G-SWUCL 02
Product Number6760594
Product FamilySWUC(RL)-E INT
Dimensions
Functional Length — in (LF)3.74"
Functional Length — mm (LF)95.0 mm
Connection Dia. — in (DCON)0.236"
Connection Dia. — mm (DCON)6.0 mm
Min. Bore Dia. — in (DMIN)0.307"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760594
EAN3603602959409
File Type Download

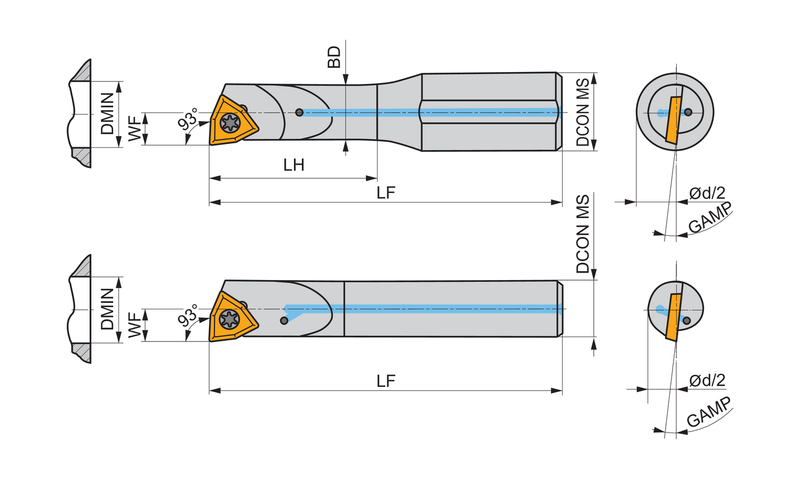

E06G-SWUCL 02 — Line Drawing PDF Download
