SVJCL 1212 L 13-DC
SVJCL 1212 L 13-DC
SVJCL 1212 L 13-DC

SVJCL 1212 L 13-DC

UGC DOR6760600
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$186.00 CAD - $186.00 CAD
$186.00 CAD
$186.00 CAD - $186.00 CAD
$186.00 CAD

Vendu en lots de : 1

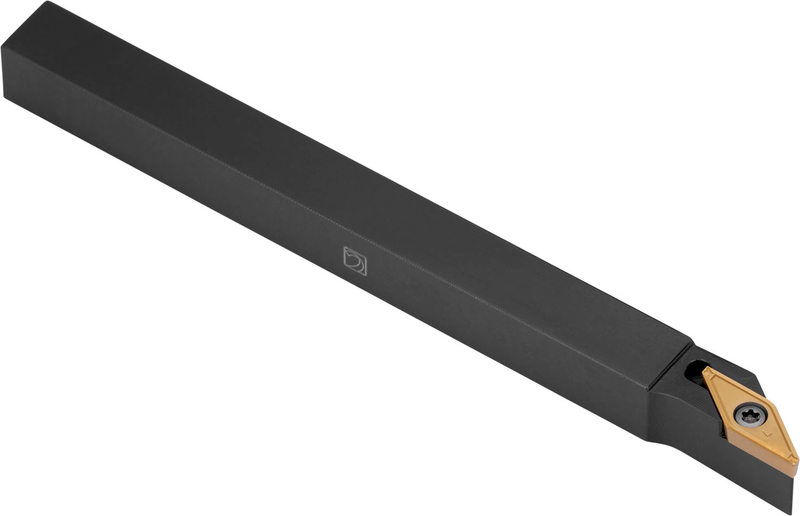

Outil de tournage à bride par vis pour plaquette positive en losange de 35° avec un diamètre de cercle inscrit de 7,94 mm, épaisseur de 3,18 mm (désignation ISO VCGX 1303..), coupe latérale gauche à 93° avec corps déporté, hauteur d'outil de 12 mm x largeur de 12 mm x longueur de 140 mm pour le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVJCL 1212 L 13-DC
Product Number6760600
Product FamilySVJC(AR)-CC EXT
Dimensions
Functional Length — in (LF)5.512"
Functional Length — mm (LF)140.0 mm
Shank Height — mm (H)0.472 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6760600
EAN3603602959461
File Type Download

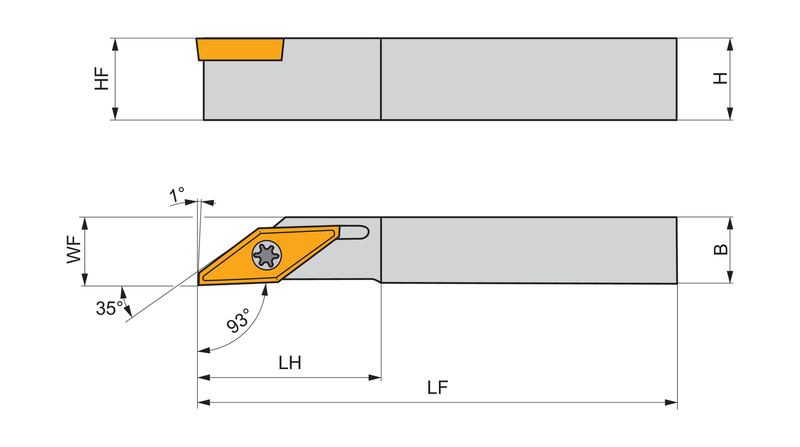

SVJCL 1212 L 13-DC — Line Drawing PDF Download
