SVJCR 1616 M 13-DC
SVJCR 1616 M 13-DC
SVJCR 1616 M 13-DC

SVJCR 1616 M 13-DC

UGC DOR6760601
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$186.00 CAD - $186.00 CAD
$186.00 CAD
$186.00 CAD - $186.00 CAD
$186.00 CAD

Vendu en lots de : 1

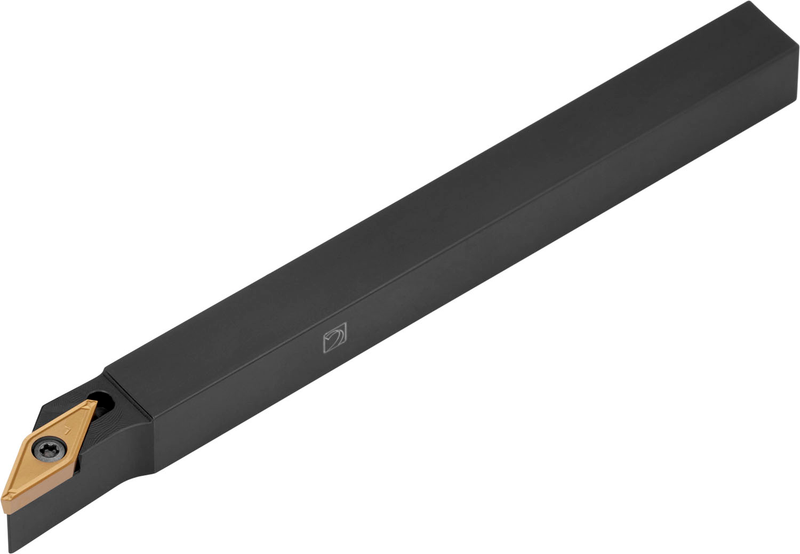

Outil de tournage à levier pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 7,94 mm, 3,18 mm d'épaisseur (désignation ISO VCGX 1303.. ), coupe à droite 93° avec un corps déporté, 16 mm de hauteur x 16 mm de largeur x 150 mm de longueur pour le tournage conique, le copiage unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVJCR 1616 M 13-DC
Product Number6760601
Product FamilySVJC(RL)-CC EXT

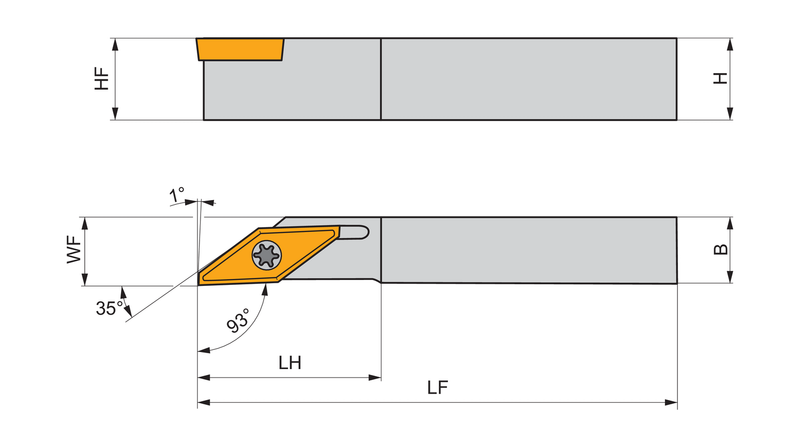

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.63 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6760601
EAN3603602959478
File Type Download
SVJCR 1616 M 13-DC — Line Drawing PDF Download
