SVJCR 2020 M 13-DC
SVJCR 2020 M 13-DC
SVJCR 2020 M 13-DC

SVJCR 2020 M 13-DC

UGC DOR6760603
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$204.00 CAD - $204.00 CAD
$204.00 CAD
$204.00 CAD - $204.00 CAD
$204.00 CAD

Vendu en lots de : 1

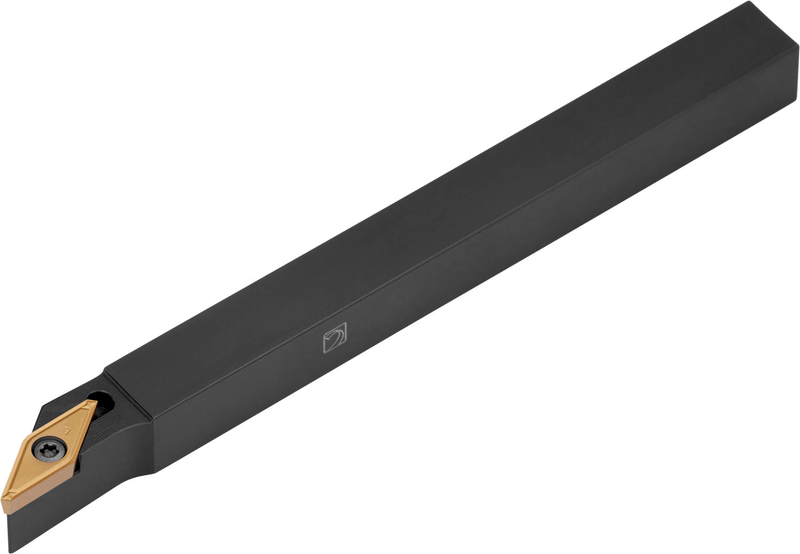

Outil de tournage à bride par vis pour plaquette positive en losange à 35° avec un diamètre de cercle inscrit de 7,94 mm, épaisseur de 3,18 mm (désignation ISO VCGX 1303...), coupe à droite à 93° avec un corps déporté, hauteur d'outil de 20 mm x largeur de 20 mm x longueur de 150 mm pour le tournage conique, le copiage unidirectionnel et multidirectionnel et le chariotage avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI)SVJCR 2020 M 13-DC
Product Name (ISO)SVJCR 2020 M 13-CC
Product Number6760603
Product FamilySVJC(RL)-CC EXT
Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6760603
EAN3603602959492
File Type Download

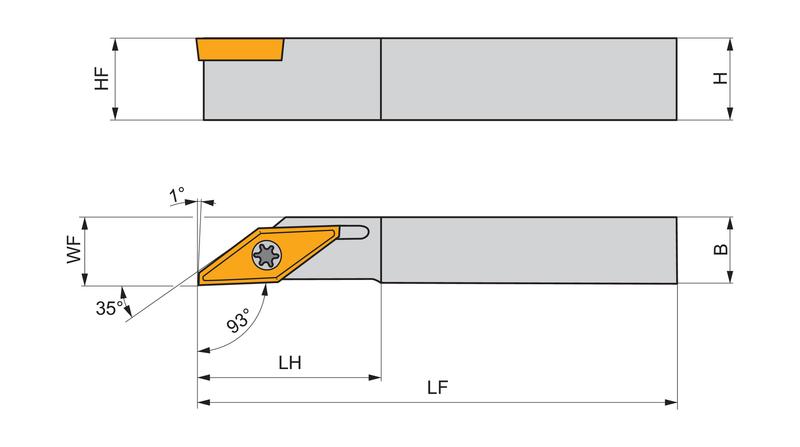

SVJCR 2020 M 13-DC — Line Drawing PDF Download
