SVJCR 2525 M 13-DC
SVJCR 2525 M 13-DC
SVJCR 2525 M 13-DC

SVJCR 2525 M 13-DC

UGC DOR6760605
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$208.00 CAD - $208.00 CAD
$208.00 CAD
$208.00 CAD - $208.00 CAD
$208.00 CAD

Vendu en lots de : 1

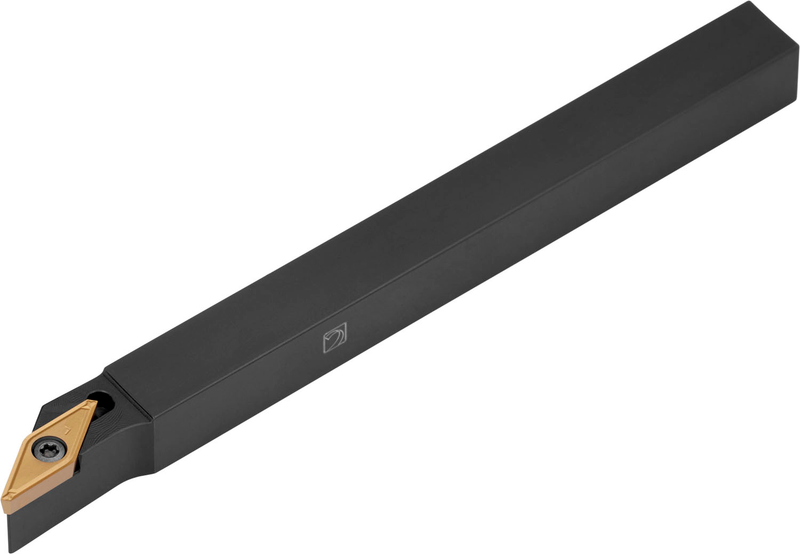

Outil de chariotage à bride pour plaquettes positives rhomboïdes 35° avec un diamètre de cercle inscrit de 7.94mm, 3.18mm d'épaisseur (désignation ISO VCGX 1303.. ), coupe à droite 93° avec un corps déporté, 25mm de hauteur x 25mm de largeur x 150mm de long pour le chariotage conique, le chariotage de copie unidirectionnel et multidirectionnel et le chariotage longitudinal avec ou sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVJCR 2525 M 13-DC
Product Number6760605
Product FamilySVJC(RL)-CC EXT

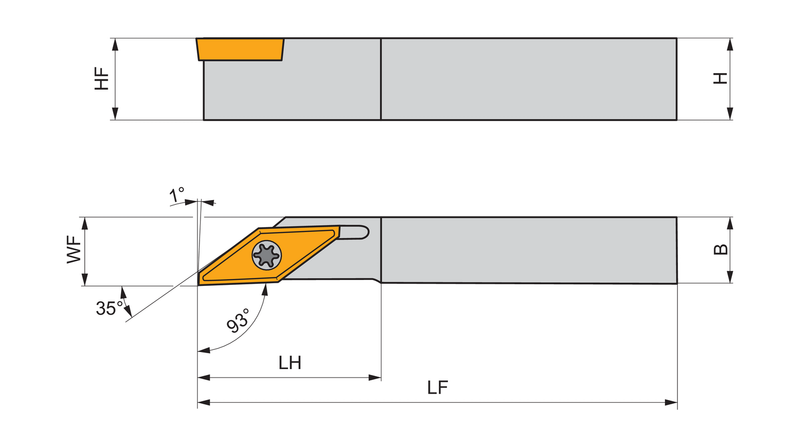

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6760605
EAN3603602959515
File Type Download
SVJCR 2525 M 13-DC — Line Drawing PDF Download
