A 03290 300
A 03290 300

A 03290 300

UGC DOR6760647
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$960.00 CAD - $960.00 CAD
$960.00 CAD
$960.00 CAD - $960.00 CAD
$960.00 CAD

Vendu en lots de : 1

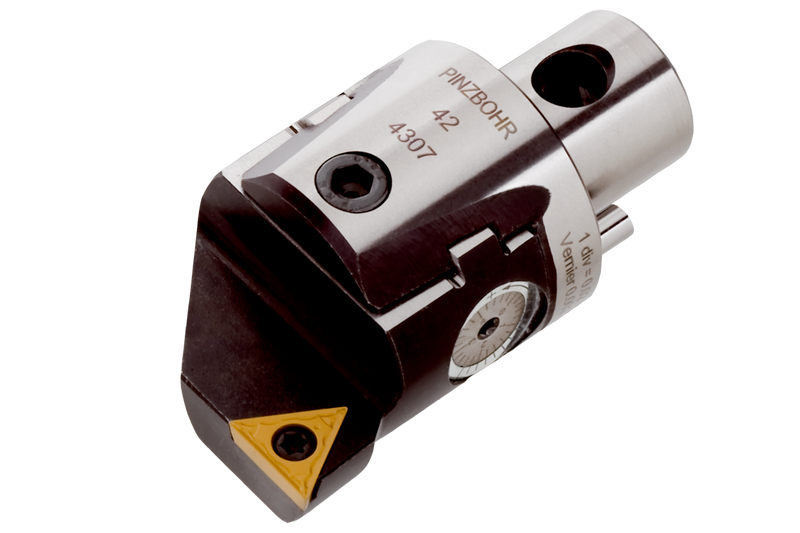

Tête d'alésage intégrale à poches, taille 32, avec angle d'attaque de 90° et précision de réglage de 2 microns pour la finition dans une plage de diamètres de 39 à 50 mm, pour insérer une plaquette TC.. 16T3.. pour l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A 03290 300
Product Number6760647
Product FamilyF90
Dimensions
Functional Length — mm (LF)45.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Tool Information
Reference Numbers
EDP Number6760647
EAN3603602959935
File Type Download

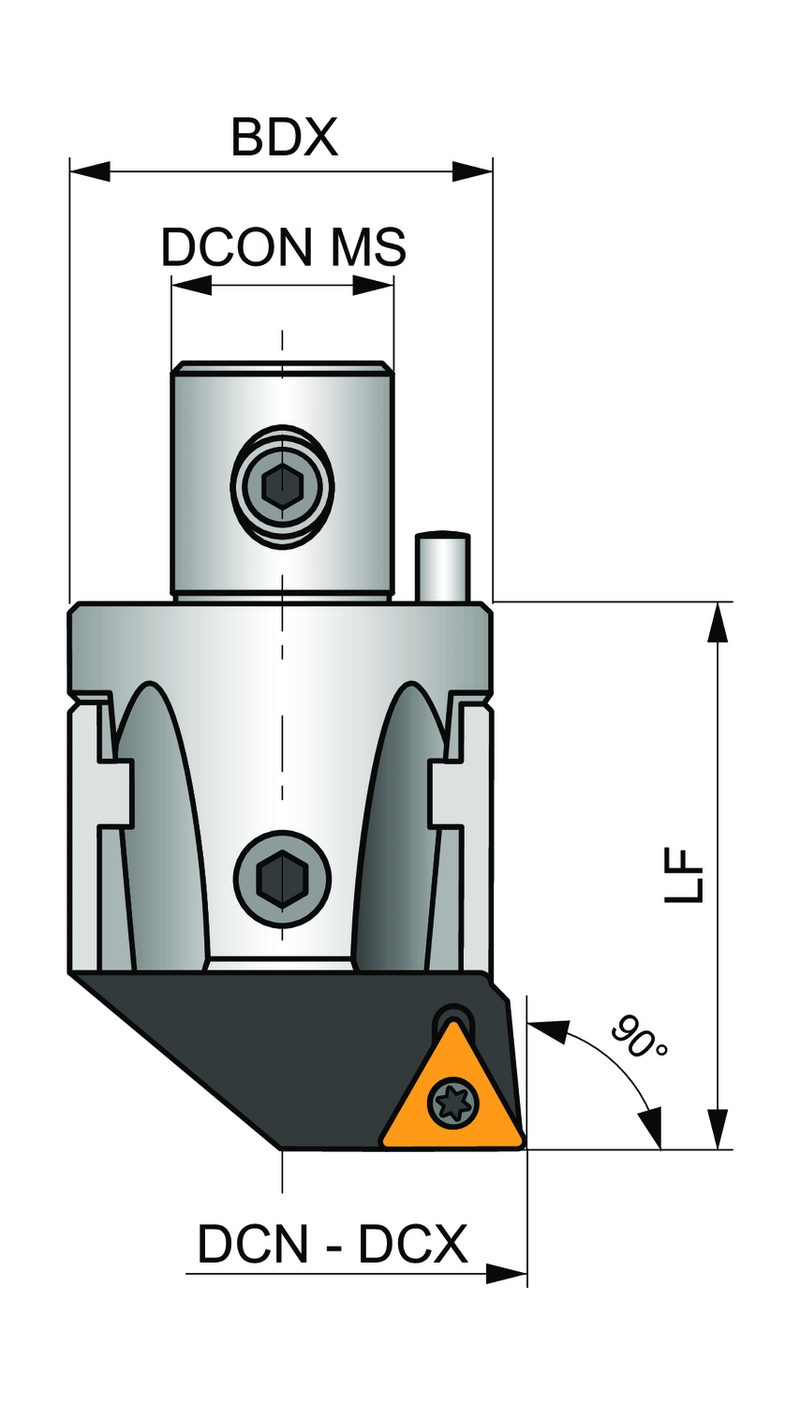

A 03290 300 — Line Drawing PDF Download
