A 04290 300
A 04290 300

A 04290 300

UGC DOR6760649
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,031.00 CAD - $1,031.00 CAD
$1,031.00 CAD
$1,031.00 CAD - $1,031.00 CAD
$1,031.00 CAD

Vendu en lots de : 1

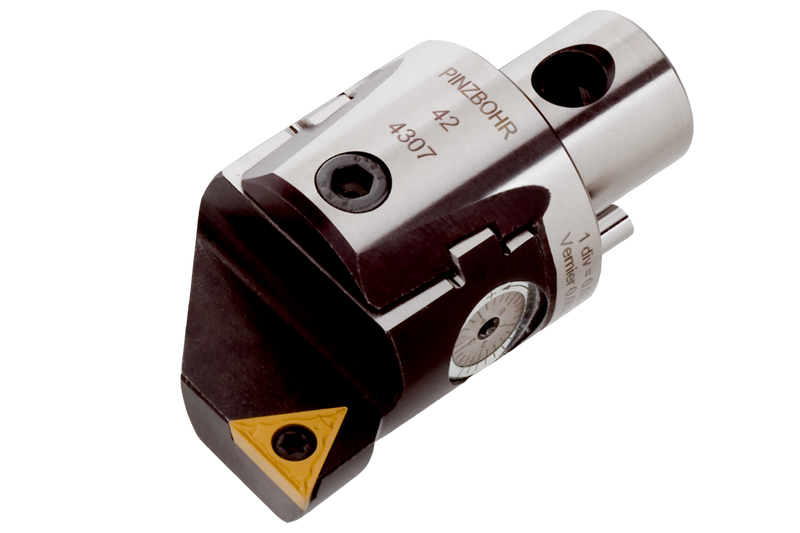

Tête d'alésage monobloc à cassette, taille 42, avec un angle d'attaque de 90° et une précision de réglage de 2 microns pour la finition dans une plage de diamètres de 49 à 65 mm, pour la fixation d'un insert TC.. 16T3.. pour l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A 04290 300
Product Number6760649
Product FamilyF90

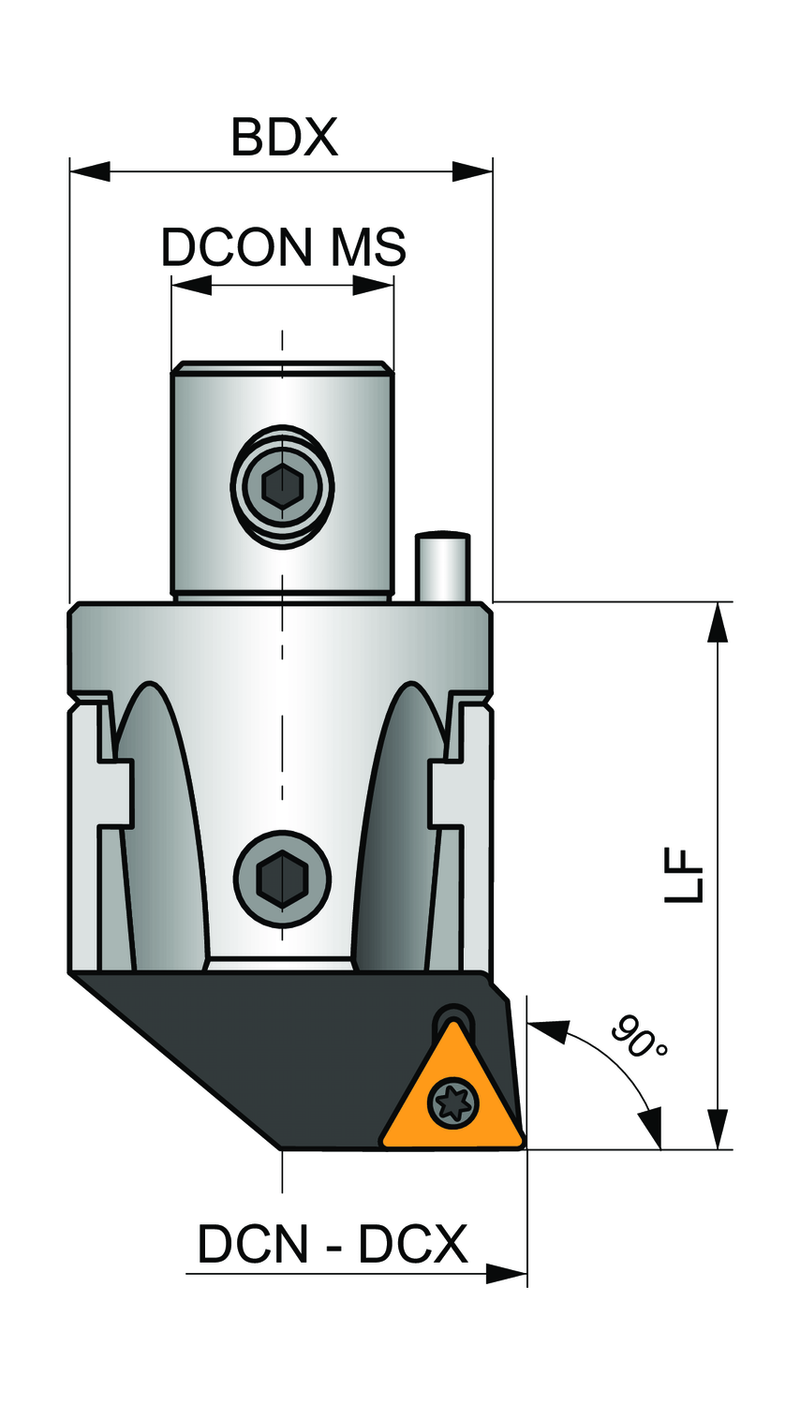

Dimensions
Functional Length — mm (LF)56.0 mm
Connection Dia. — in (DCON)0.945"
Connection Dia. — mm (DCON)24.0 mm
Tool Information
Reference Numbers
EDP Number6760649
EAN3603602959959
File Type Download
A 04290 300 — Line Drawing PDF Download
