A 05490 402
A 05490 402

A 05490 402

UGC DOR6760652
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,183.00 CAD - $1,183.00 CAD
$1,183.00 CAD
$1,183.00 CAD - $1,183.00 CAD
$1,183.00 CAD

Vendu en lots de : 1

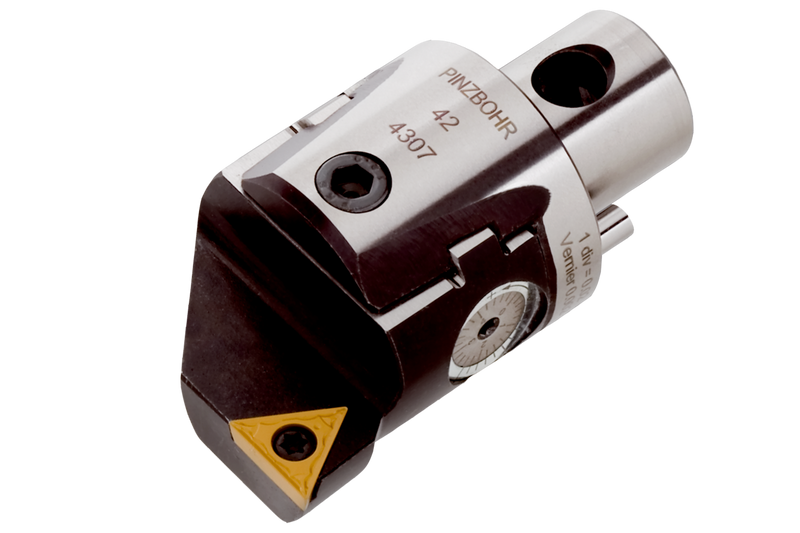

Tête d'alésage intégrale type à plaquettes radiales taille 54 avec un angle d'attaque de 90° et une précision de réglage de 2 microns pour la finition dans une plage de diamètre de 63 à 82 mm, pour recevoir un insert CC.. 1204.. pour l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A 05490 402
Product Number6760652
Product FamilyF90

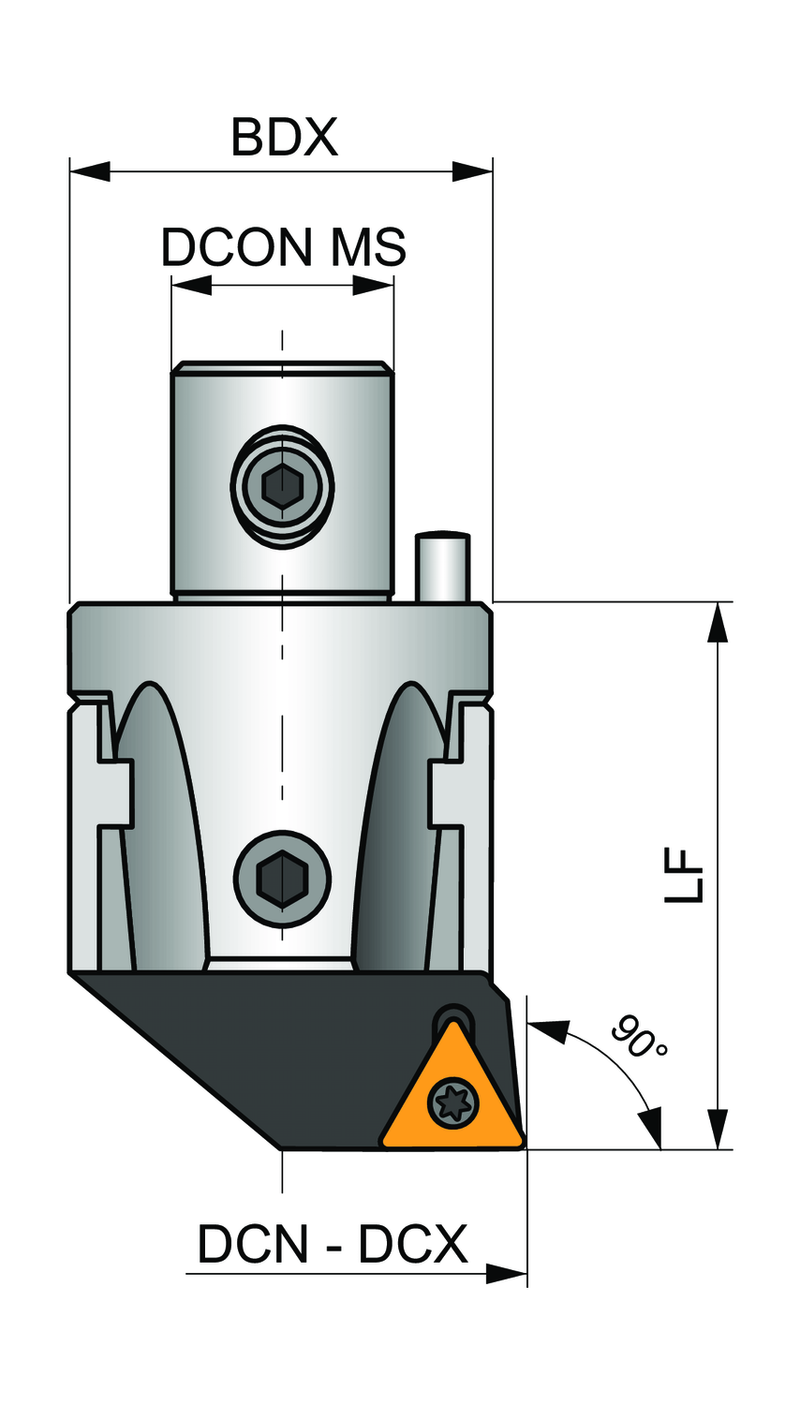

Dimensions
Functional Length — mm (LF)66.0 mm
Connection Dia. — in (DCON)1.102"
Connection Dia. — mm (DCON)28.0 mm
Tool Information
Reference Numbers
EDP Number6760652
EAN3603602959980
File Type Download
A 05490 402 — Line Drawing PDF Download
