A 20090 300
A 20090 300

A 20090 300

UGC DOR6760654
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,943.00 CAD - $1,943.00 CAD
$1,943.00 CAD
$1,943.00 CAD - $1,943.00 CAD
$1,943.00 CAD

Vendu en lots de : 1

Tête d'alésage à cartouche taille 200 avec angle d'approche de 90° et précision de réglage de 2 microns pour la finition dans une plage de diamètre de 160 à 220 mm, complète avec une cartouche 3CT 90 300 pour maintenir l'insert TC.. 16T3.. pour l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A 20090 300
Product Number6760654
Product FamilyF90-C

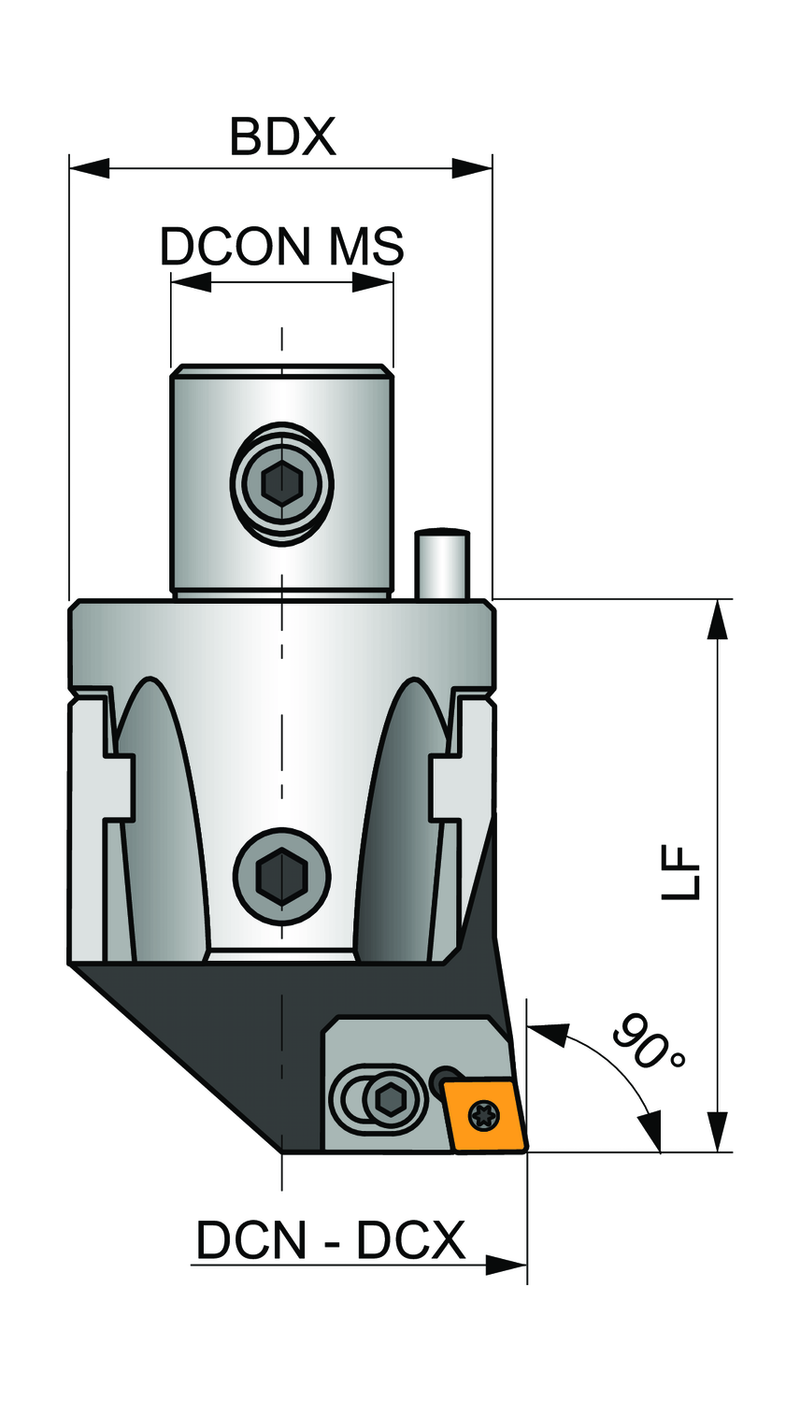

Dimensions
Functional Length — mm (LF)100.0 mm
Connection Dia. — in (DCON)2.362"
Connection Dia. — mm (DCON)60.0 mm
Tool Information
Reference Numbers
EDP Number6760654
EAN3603602960009
File Type Download
A 20090 300 — Line Drawing PDF Download
