D 02290 400
D 02290 400

D 02290 400

UGC DOR6760655
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,169.00 CAD - $1,169.00 CAD
$1,169.00 CAD
$1,169.00 CAD - $1,169.00 CAD
$1,169.00 CAD

Vendu en lots de : 1

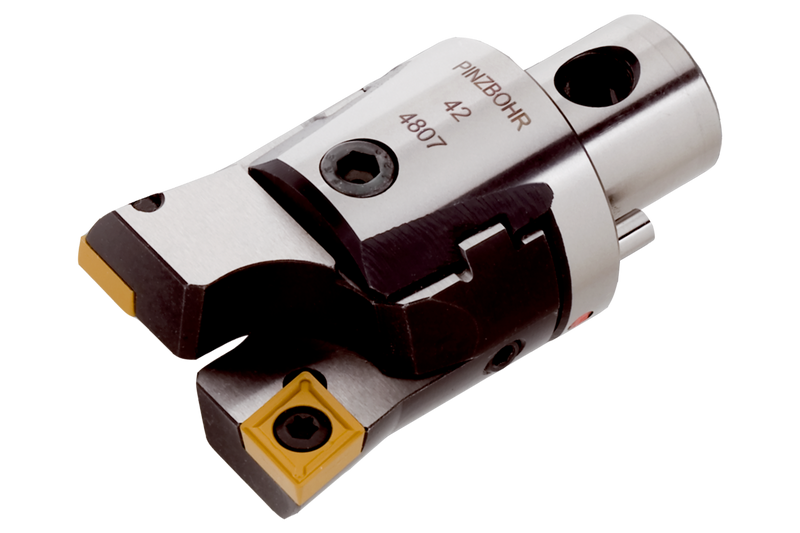

Tête d'alésage intégrale type à poche taille 22 avec angle d'approche de 90° et réglage synchronisé pour l'ébauche dans une plage de diamètres de 24 à 30 mm, pour maintenir des plaquettes CC... 0602... pour l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D 02290 400
Product Number6760655
Product FamilyD90

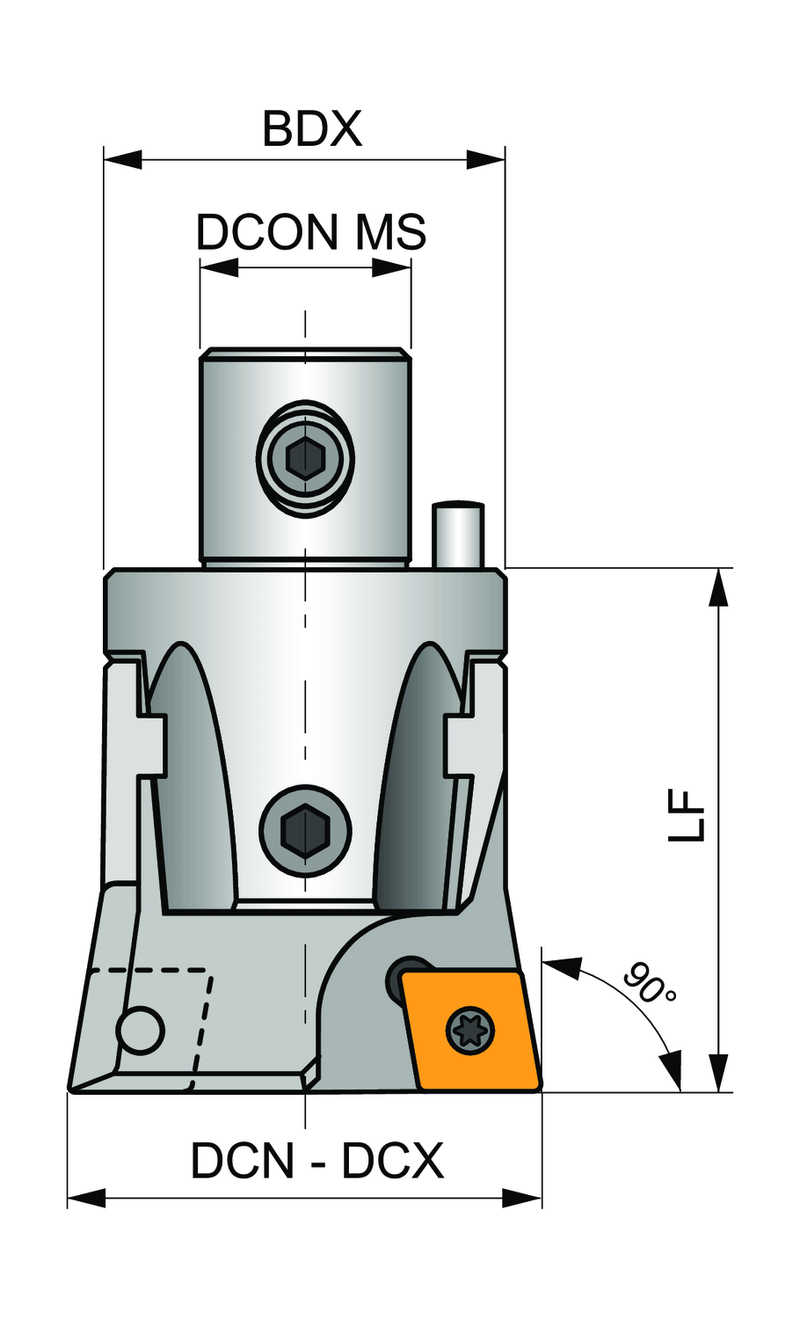

Dimensions
Functional Length — mm (LF)34.0 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Tool Information
Reference Numbers
EDP Number6760655
EAN3603602960016
File Type Download
D 02290 400 — Line Drawing PDF Download
