S08F SCLCR 06-B
S08F SCLCR 06-B

S08F SCLCR 06-B

UGC DOR6760719
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$342.00 CAD - $342.00 CAD
$342.00 CAD
$342.00 CAD - $342.00 CAD
$342.00 CAD

Vendu en lots de : 1

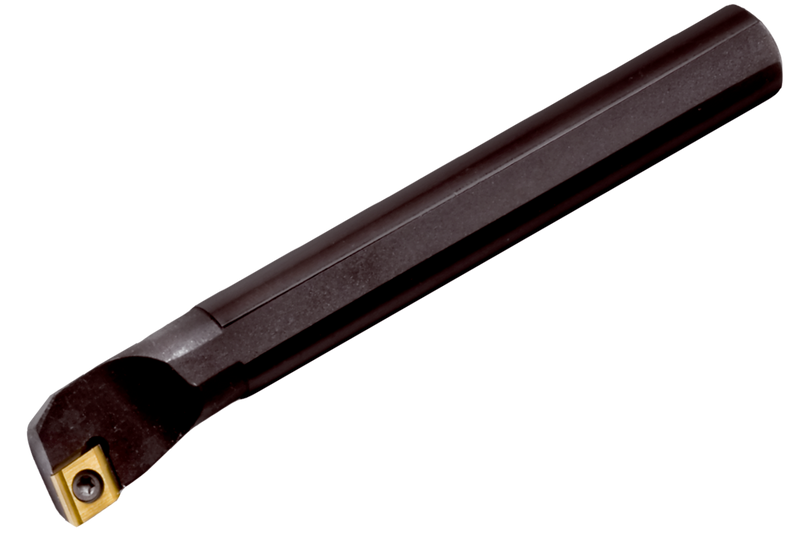

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 80° avec diamètre de cercle inscrit de 6,35mm, épaisseur 2,38mm (désignation ISO CC.. 0602.. ), coupe à droite 95° latérale et frontale avec corps déporté, en acier sans trou d'arrosage, diamètre 8mm longueur de dépassement 50mm pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S08F SCLCR 06-B
Product Number6760719
Product FamilyBarres ISO

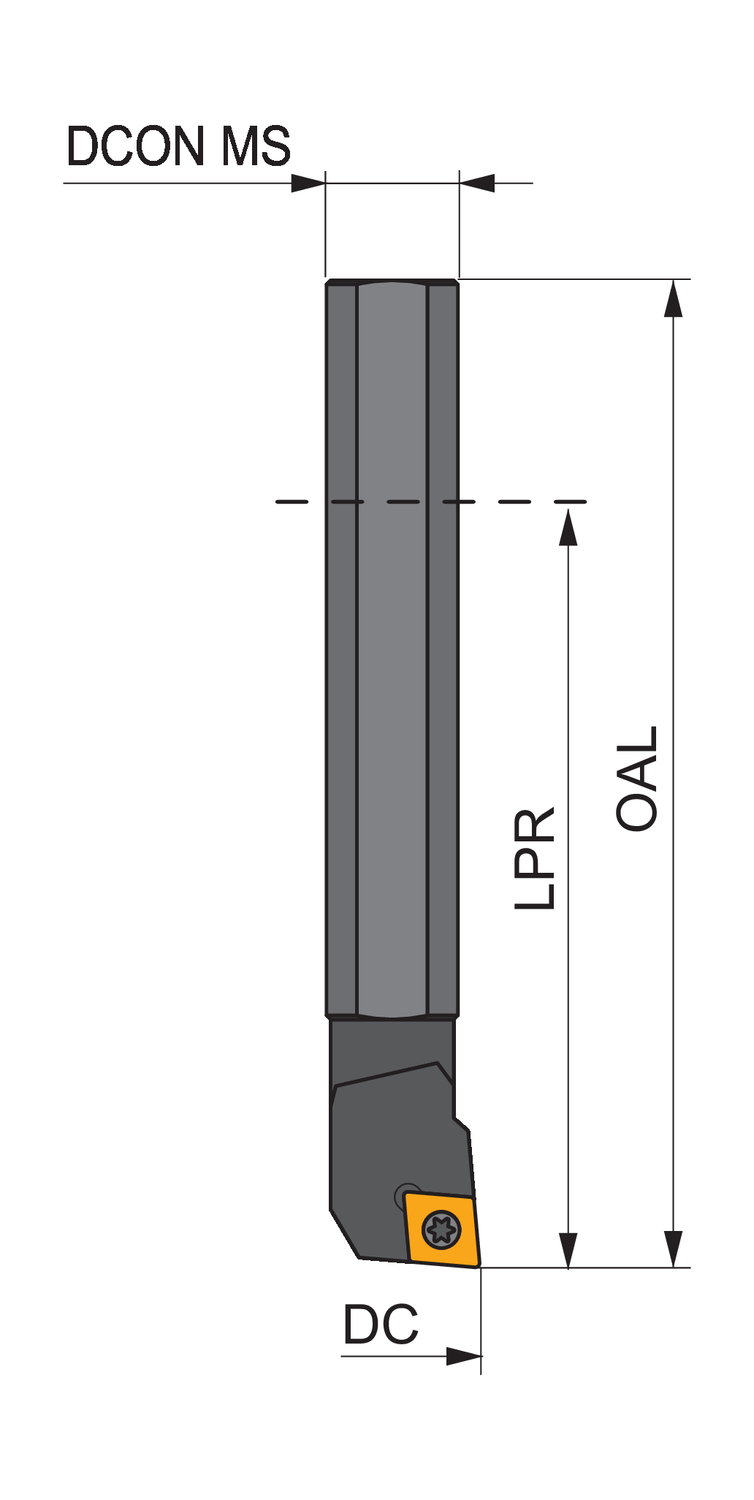

Dimensions
Cutting Diameter — in (DC)0.394"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)3.15"
Overall Length — mm (OAL)80.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Tool Information
Reference Numbers
EDP Number6760719
EAN3603602960658
File Type Download
S08F SCLCR 06-B — Line Drawing PDF Download
