S10G SCLCR 06-B
S10G SCLCR 06-B

S10G SCLCR 06-B

UGC DOR6760720
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$342.00 CAD - $342.00 CAD
$342.00 CAD
$342.00 CAD - $342.00 CAD
$342.00 CAD

Vendu en lots de : 1

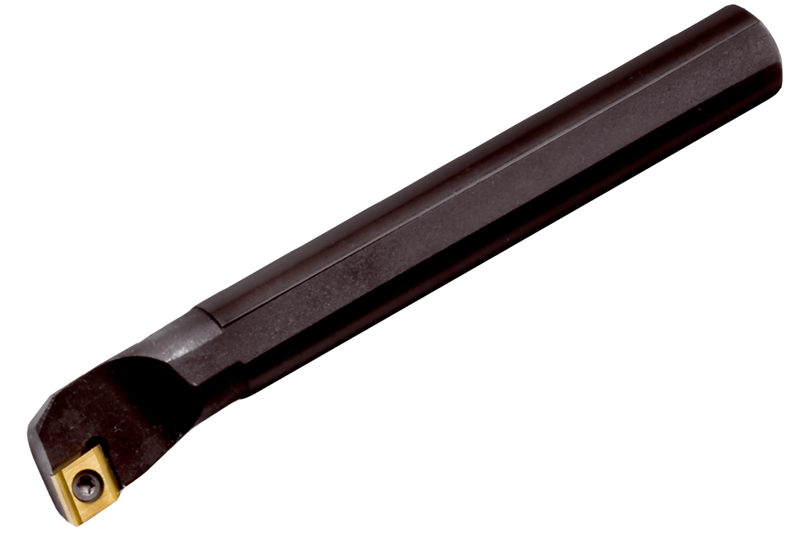

Barre d'alésage à mors pour plaquette positive rhomboïde 80° avec un diamètre de cercle inscrit de 6,35mm, 2,38mm d'épaisseur (désignation ISO CC.. 0602.. ), coupe latérale et frontale à 95° à droite avec queue déportée, en acier sans trou d'arrosage, diamètre 10mm longueur de dépassement 54mm pour l'alésage conique et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S10G SCLCR 06-B
Product Number6760720
Product FamilyBARRES ISO

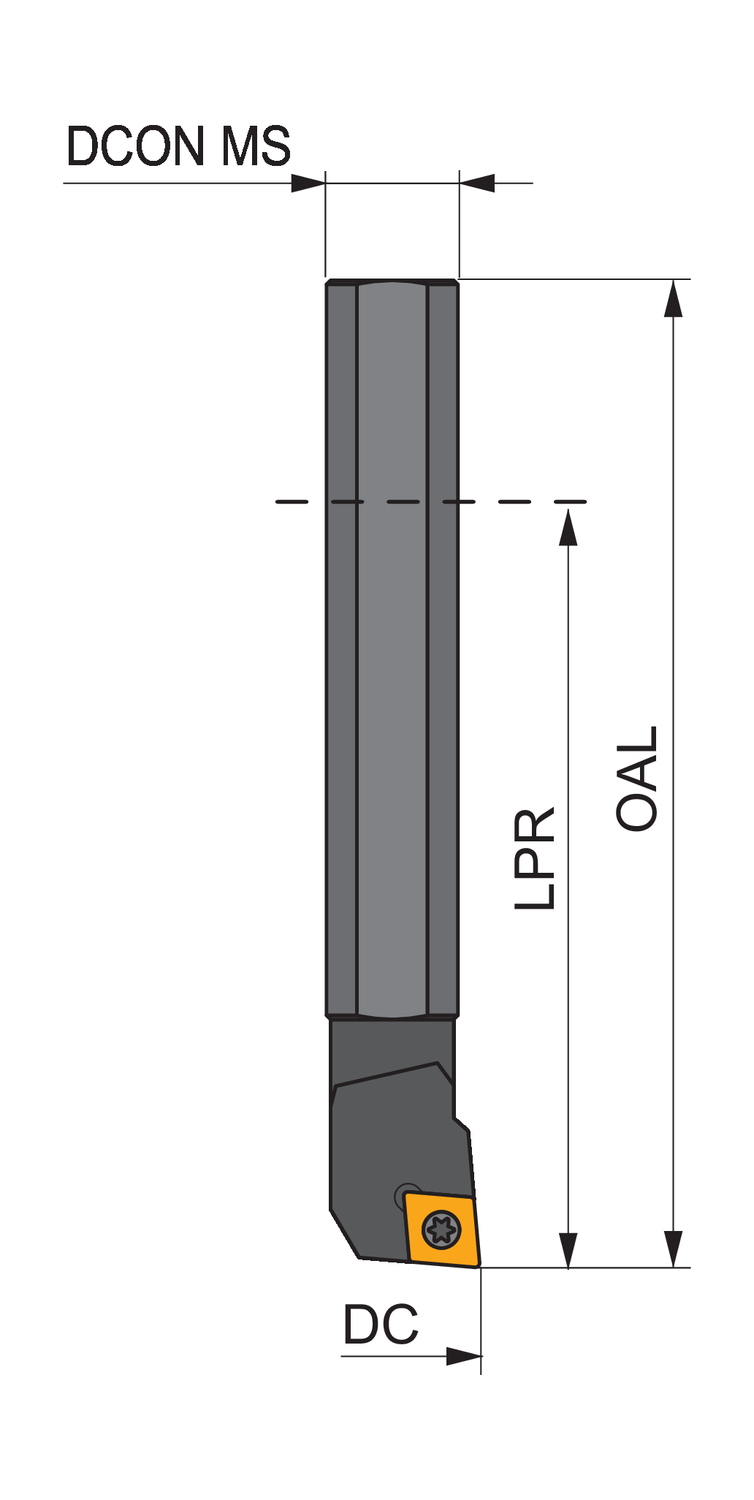

Dimensions
Cutting Diameter — in (DC)0.512"
Cutting Diameter — mm (DC)13.0 mm
Overall Length — in (OAL)3.543"
Overall Length — mm (OAL)90.0 mm
Connection Dia. — in (DCON)0.394"
Connection Dia. — mm (DCON)10.0 mm
Tool Information
Reference Numbers
EDP Number6760720
EAN3603602960665
File Type Download
S10G SCLCR 06-B — Line Drawing PDF Download
