S12H SCLCR 06-B
S12H SCLCR 06-B

S12H SCLCR 06-B

UGC DOR6760721
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$342.00 CAD - $342.00 CAD
$342.00 CAD
$342.00 CAD - $342.00 CAD
$342.00 CAD

Vendu en lots de : 1

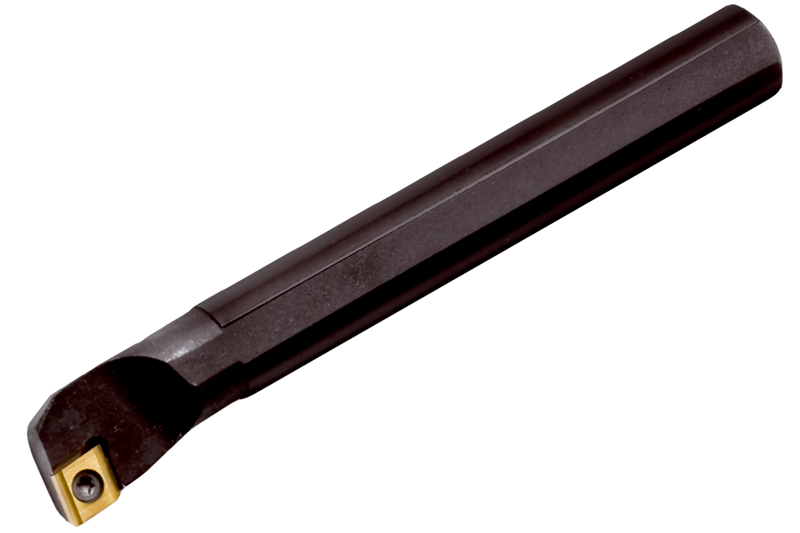

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 80° avec diamètre du cercle inscrit 6,35mm, épaisseur 2,38mm (désignation ISO CC.. 0602.. ), coupe latérale et frontale de 95° à droite avec queue déportée, en acier sans trou d'arrosage, diamètre 12mm longueur de dépassement 64mm pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S12H SCLCR 06-B
Product Number6760721
Product FamilyBARRES ISO

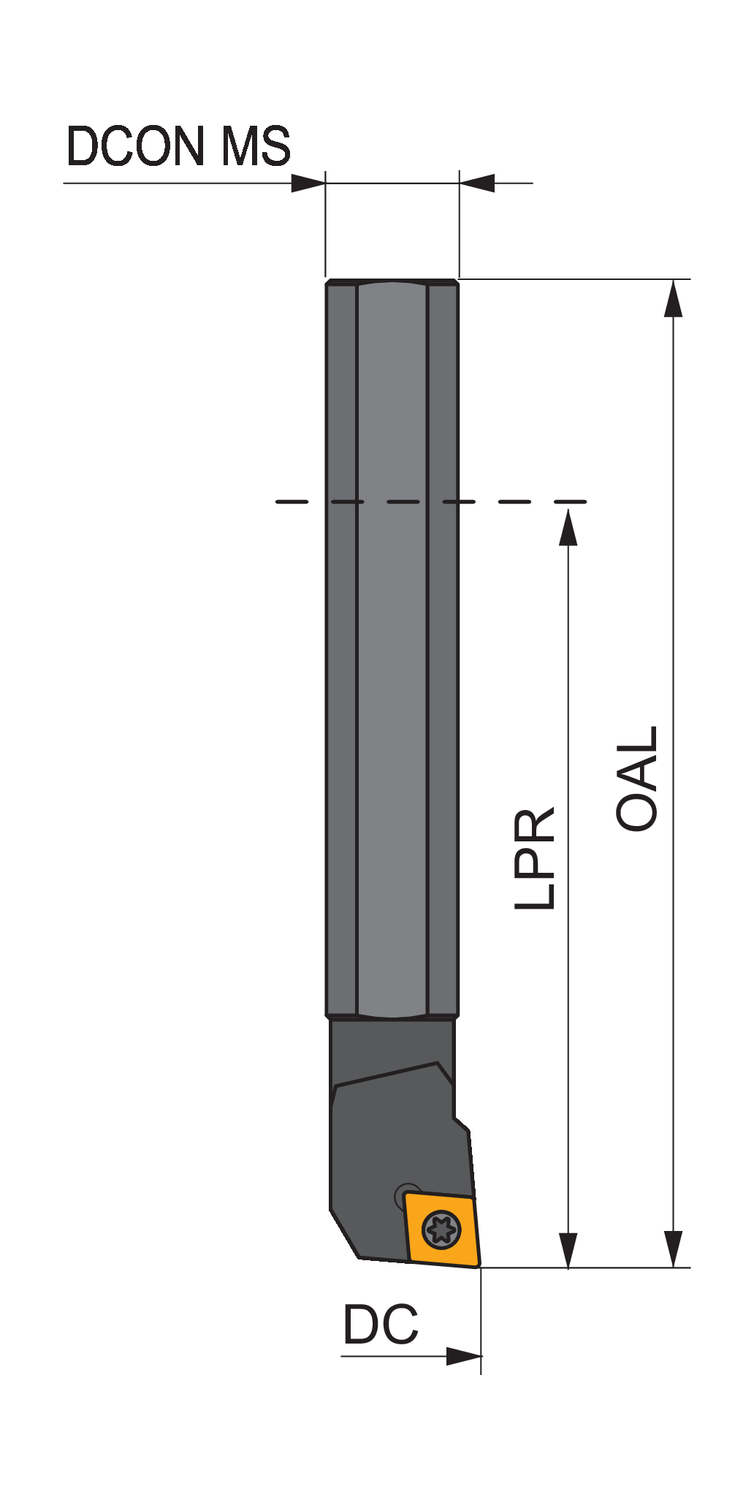

Dimensions
Cutting Diameter — in (DC)0.63"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Tool Information
Reference Numbers
EDP Number6760721
EAN3603602960672
File Type Download
S12H SCLCR 06-B — Line Drawing PDF Download
