HSK 063A 032 075
HSK 063A 032 075

HSK 063A 032 075

UGC DOR6760738
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$987.00 CAD - $987.00 CAD
$987.00 CAD
$987.00 CAD - $987.00 CAD
$987.00 CAD

Vendu en lots de : 1

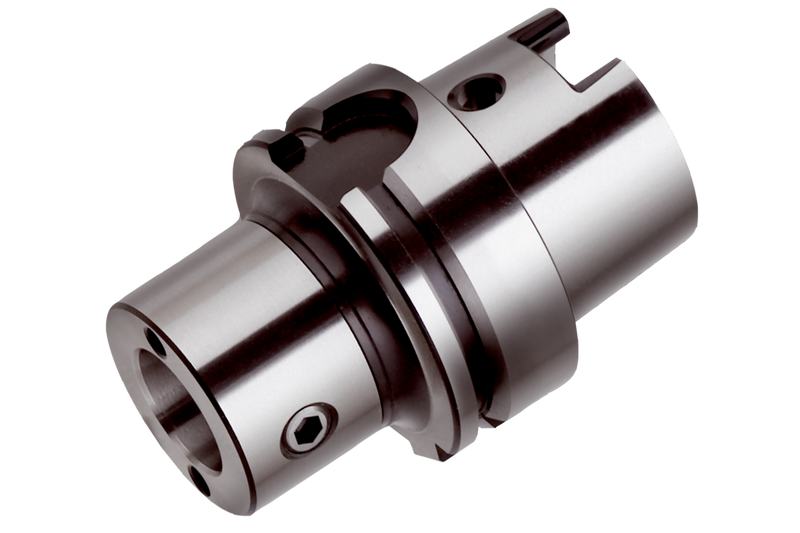

Queue d'outil pour système d'alésage modulaire taille 32 avec queue conique creuse HSK-A 63 selon DIN 69893-A, alimentation en liquide de refroidissement et longueur de dépassement de 75 (tête d'alésage comprise)

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HSK 063A 032 075
Product Number6760738
Product FamilyHSK-BS
Dimensions
Usable Length — mm (LU)75.0 mm
Functional Length — mm (LF)101.0 mm
Tool Information
Reference Numbers
EDP Number6760738
EAN3603602960849
File Type Download

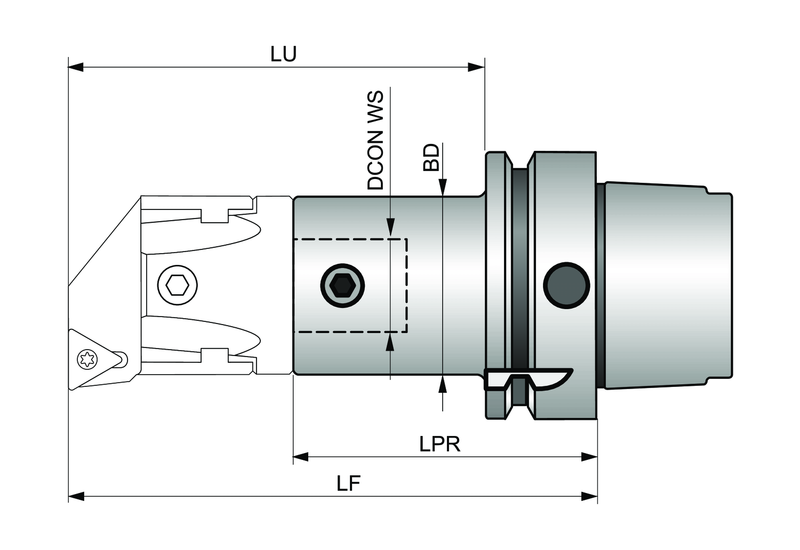

HSK 063A 032 075 — Line Drawing PDF Download
