A32T-SVUCR 13
A32T-SVUCR 13
A32T-SVUCR 13

A32T-SVUCR 13

UGC DOR6760742
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$385.00 CAD - $385.00 CAD
$385.00 CAD
$385.00 CAD - $385.00 CAD
$385.00 CAD

Vendu en lots de : 1

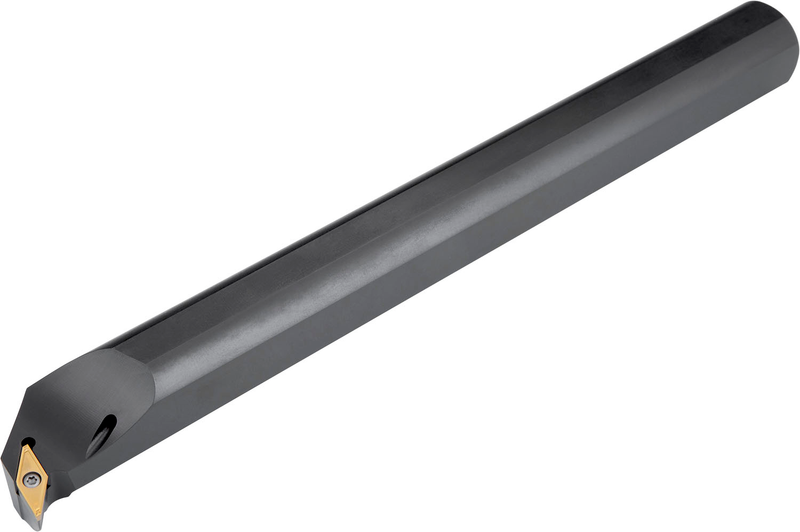

Alésoir à vis pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 7,94 mm, 3,18 mm d'épaisseur (désignation ISO VC... 1303...), coupe à droite à 93° avec queue déportée, acier avec trou d'arrosage, diamètre 32 mm x 300 mm de long pour alésage de reproduction unidirectionnel et multidirectionnel et chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A32T-SVUCR 13
Product Number6760742
Product FamilySVUB(C)(RL) INT
Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760742
EAN3603602960887
File Type Download

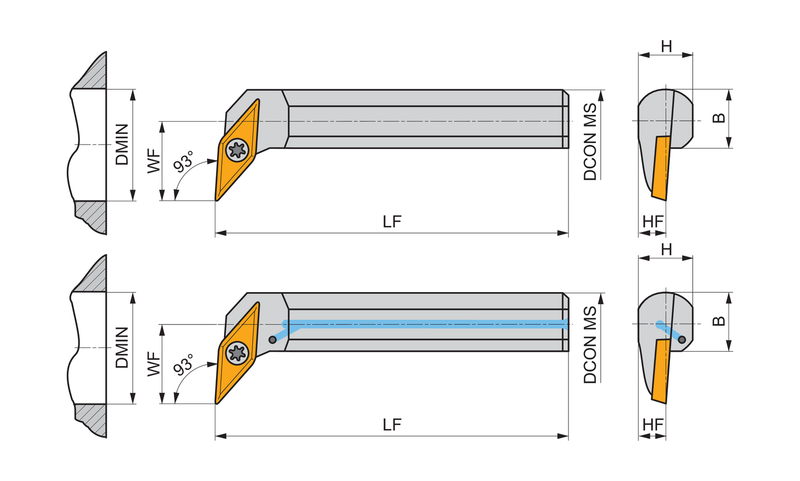

A32T-SVUCR 13 — Line Drawing PDF Download
