A10H-SVXCL 07
A10H-SVXCL 07
A10H-SVXCL 07

A10H-SVXCL 07

UGC DOR6760756
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$205.00 CAD - $205.00 CAD
$205.00 CAD
$205.00 CAD - $205.00 CAD
$205.00 CAD

Vendu en lots de : 1

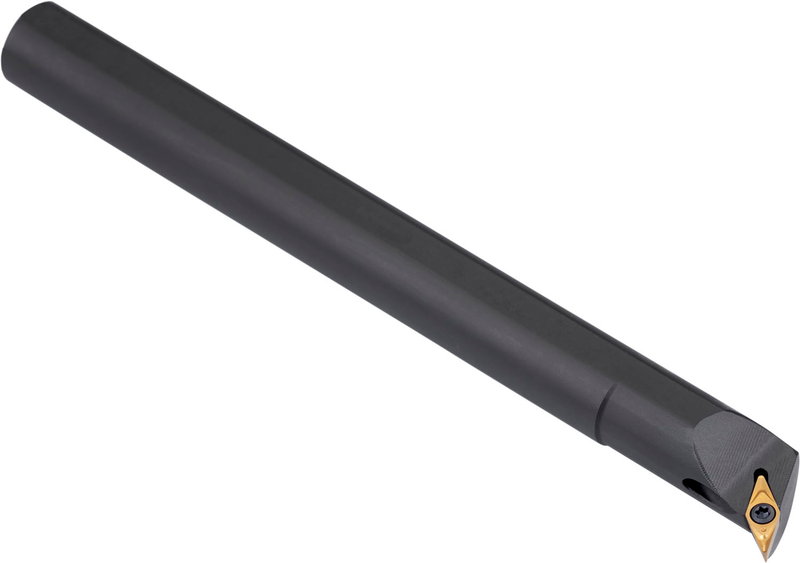

Barre d'alésage à vis pour plaquette positive en losange 35° avec un diamètre de cercle inscrit de 3,97 mm, épaisseur de 2,38 mm (désignation ISO VC.. 0702.. ), outil spécial à gauche, acier avec trou d'arrosage, diamètre 10 mm x 100 mm de long pour alésage de copiage unidirectionnel et multidirectionnel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A10H-SVXCL 07
Product Number6760756
Product FamilySVXC(RL) INT

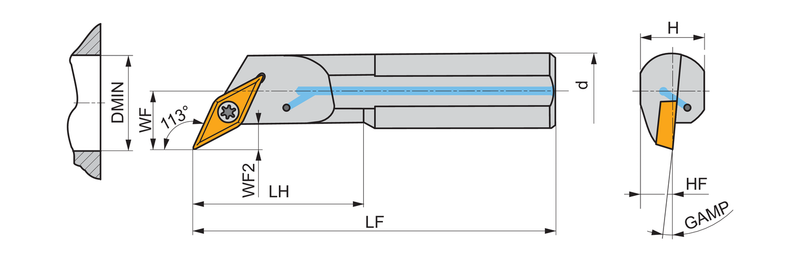

Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Connection Dia. — in (DCON)0.394"
Connection Dia. — mm (DCON)10.0 mm
Shank Height — mm (H)0.354 mm
Min. Bore Dia. — in (DMIN)0.492"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6760756
EAN3603602961020
File Type Download
A10H-SVXCL 07 — 3D Model STP Download
A10H-SVXCL 07 — Line Drawing PDF Download
