E12K-SVXCR 07
E12K-SVXCR 07
E12K-SVXCR 07

E12K-SVXCR 07

UGC DOR6760761
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$699.00 CAD - $699.00 CAD
$699.00 CAD
$699.00 CAD - $699.00 CAD
$699.00 CAD

Vendu en lots de : 1

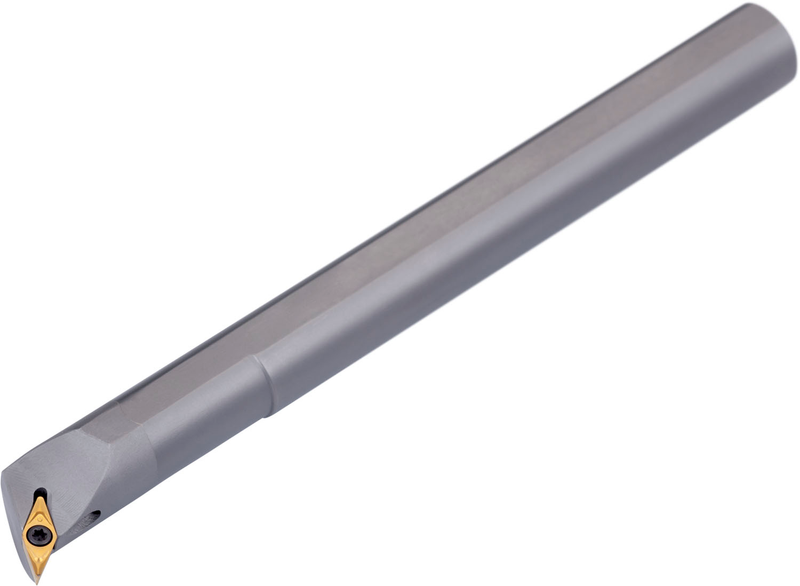

Barre d'alésage à serrage par vis pour plaquette positive rhomboïde de 35° avec diamètre de cercle inscrit de 3,97 mm, épaisseur de 2,38 mm (désignation ISO VC.. 0702.. ), outil spécial droit, carbure avec trou d'arrosage, diamètre 12 mm x longueur 125 mm pour alésage de copiage unidirectionnel et multidirectionnel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E12K-SVXCR 07
Product Number6760761
Product FamilySVXC(RL)-E INT
Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Shank Height — mm (H)0.433 mm
Min. Bore Dia. — in (DMIN)0.61"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6760761
EAN3603602961075
File Type Download

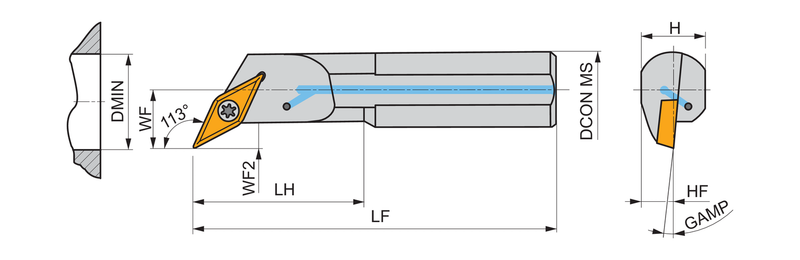

E12K-SVXCR 07 — Line Drawing PDF Download
