S20S-SEUCL 08
S20S-SEUCL 08

S20S-SEUCL 08

UGC DOR6760770
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$244.00 CAD - $244.00 CAD
$244.00 CAD
$244.00 CAD - $244.00 CAD
$244.00 CAD

Vendu en lots de : 1

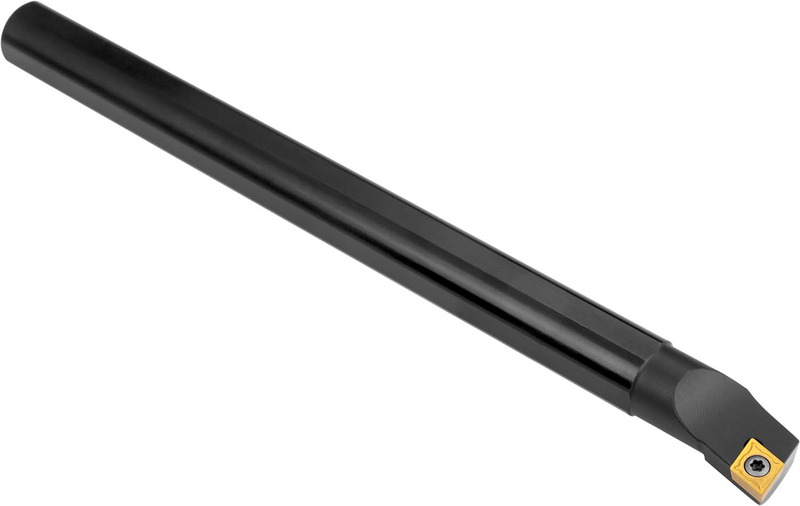

Alésoir à plaquette amovible à vis, pour plaquette positive rhomboïde à 75° avec un cercle inscrit de 7,94 mm de diamètre, 3,18 mm d'épaisseur (désignation ISO EC.. 0803.. ), 93° à gauche, queue déportée, en acier sans trou d'arrosage, de 20 mm de diamètre x 250 mm de long pour l'alésage conique et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S20S-SEUCL 08
Product Number6760770
Product FamilySEUC(RL) INT
Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)0.709 mm
Min. Bore Dia. — in (DMIN)0.984"
Tool Information
Reference Numbers
EDP Number6760770
EAN3603602961167
File Type Download

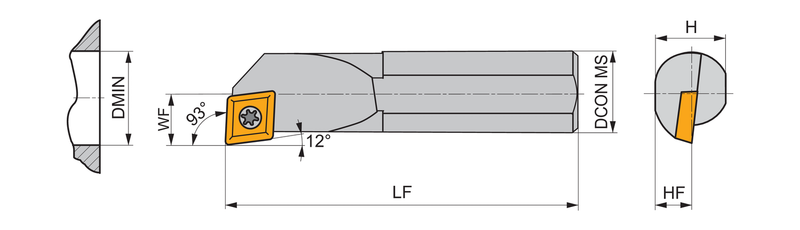

S20S-SEUCL 08 — Line Drawing PDF Download
