E0608H-SEXPL 05
E0608H-SEXPL 05
E0608H-SEXPL 05

E0608H-SEXPL 05

UGC DOR6760772
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$663.00 CAD - $663.00 CAD
$663.00 CAD
$663.00 CAD - $663.00 CAD
$663.00 CAD

Vendu en lots de : 1

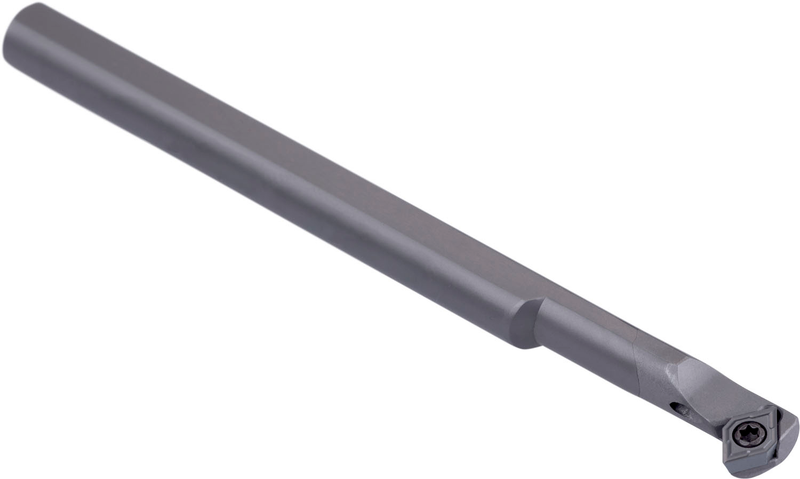

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 75° avec un diamètre de cercle inscrit de 5,56 mm, épaisseur de 2,38 mm (désignation ISO EP.. 0502..), outil spécial à gauche, carbure avec trou d'arrosage, 6 mm de diamètre x 100 mm de long pour l'alésage conique, l'alésage de copiage unidirectionnel et multidirectionnel et le chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0608H-SEXPL 05
Product Number6760772
Product FamilySEXP(RL)-E INT
Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Min. Bore Dia. — in (DMIN)0.374"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6760772
EAN3603602961181
File Type Download

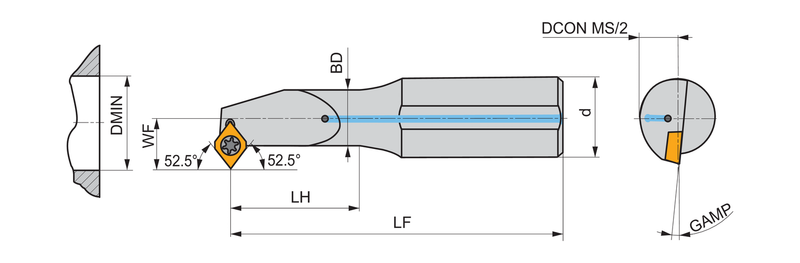

E0608H-SEXPL 05 — Line Drawing PDF Download
