E0810J-SEXPR 05
E0810J-SEXPR 05
E0810J-SEXPR 05

E0810J-SEXPR 05

UGC DOR6760774
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$780.00 CAD - $780.00 CAD
$780.00 CAD
$780.00 CAD - $780.00 CAD
$780.00 CAD

Vendu en lots de : 1

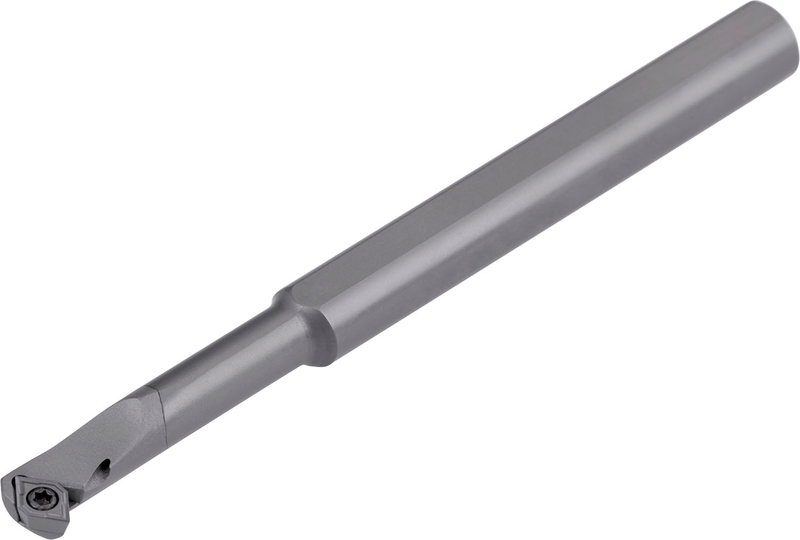

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 75° avec un diamètre de cercle inscrit de 5,56 mm, épaisseur de 2,38 mm (désignation ISO EP.. 0502..), outil spécial main droite, carbure avec trou d'arrosage, diamètre 8 mm x 110 mm de long pour alésage conique, alésage de copiage unidirectionnel et multidirectionnel et chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0810J-SEXPR 05
Product Number6760774
Product FamilySEXP(RL)-E INT
Dimensions
Functional Length — in (LF)4.331"
Functional Length — mm (LF)110.0 mm
Connection Dia. — in (DCON)0.394"
Connection Dia. — mm (DCON)10.0 mm
Min. Bore Dia. — in (DMIN)0.433"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6760774
EAN3603602961204
File Type Download

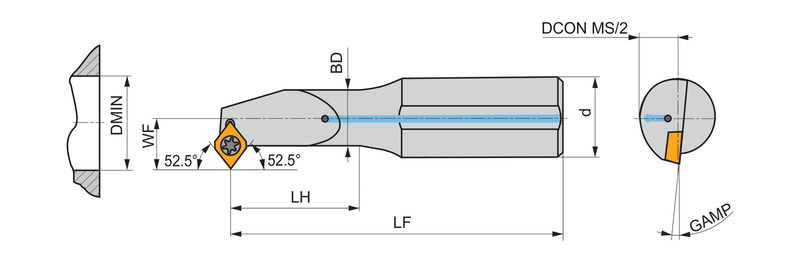

E0810J-SEXPR 05 — Line Drawing PDF Download
