E1012K-SEXPR 05
E1012K-SEXPR 05
E1012K-SEXPR 05

E1012K-SEXPR 05

UGC DOR6760775
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$957.00 CAD - $957.00 CAD
$957.00 CAD
$957.00 CAD - $957.00 CAD
$957.00 CAD

Vendu en lots de : 1

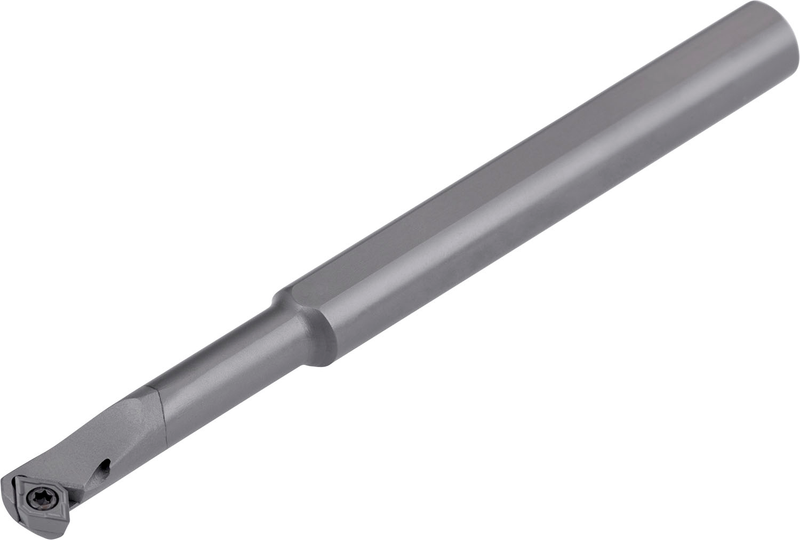

Barre d'alésage à mors pour plaquette positive en losange à 75° avec un diamètre de cercle inscrit de 5,56 mm, une épaisseur de 2,38 mm (désignation ISO EP.. 0502..), outil spécial droitier, en carbure avec trou d'arrosage, diamètre 10 mm x 125 mm de long pour l'alésage conique, l'alésage de copiage unidirectionnel et multidirectionnel et le chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E1012K-SEXPR 05
Product Number6760775
Product FamilySEXP(ER)-I INT
Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Min. Bore Dia. — in (DMIN)0.512"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6760775
EAN3603602961211
File Type Download

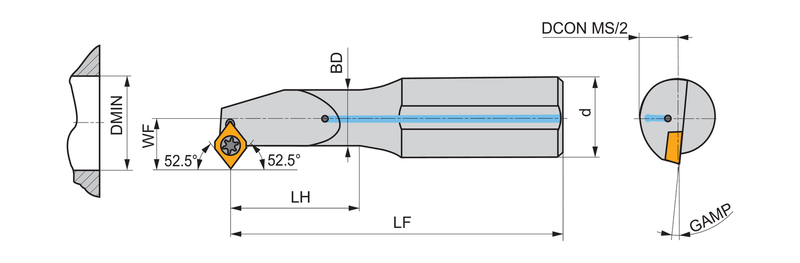

E1012K-SEXPR 05 — Line Drawing PDF Download
