SVJCL 2525 M 13-DC
SVJCL 2525 M 13-DC
SVJCL 2525 M 13-DC

SVJCL 2525 M 13-DC

UGC DOR6760830
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$208.00 CAD - $208.00 CAD
$208.00 CAD
$208.00 CAD - $208.00 CAD
$208.00 CAD

Vendu en lots de : 1

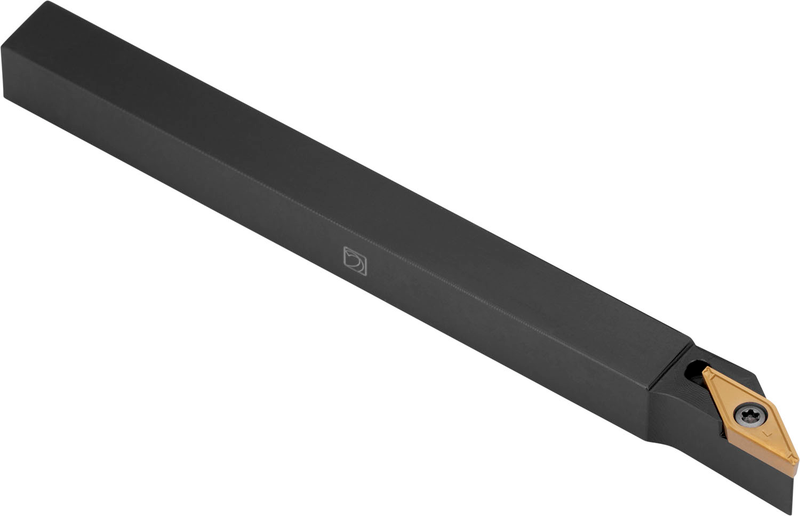

Outil de tournage à levier pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 7,94 mm, épaisseur de 3,18 mm (désignation ISO VCGX 1303..), coupe latérale à 93° à gauche avec queue déportée, hauteur d'outil de 25 mm x largeur de 25 mm x longueur de 150 mm pour le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVJCL 2525 M 13-DC
Product Number6760830
Product FamilySVJC(RL)-CC EXT
Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Reference Numbers
EDP Number6760830
EAN3603602961761
File Type Download

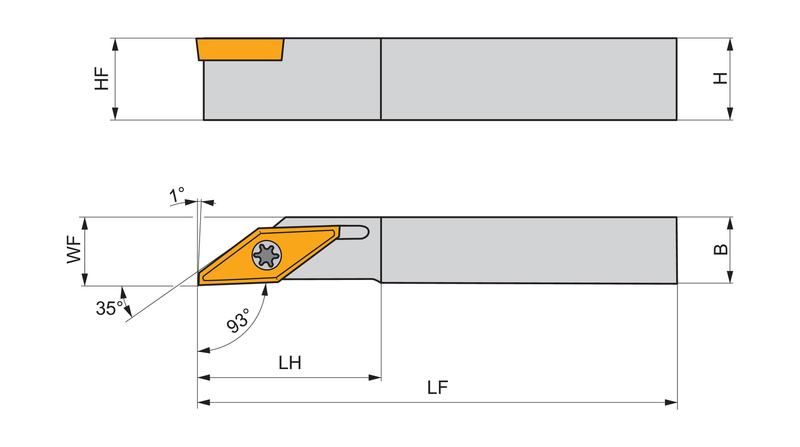

SVJCL 2525 M 13-DC — Line Drawing PDF Download
