SVACR 2020 M 13-DC
SVACR 2020 M 13-DC
SVACR 2020 M 13-DC

SVACR 2020 M 13-DC

UGC DOR6760834
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$204.00 CAD - $204.00 CAD
$204.00 CAD
$204.00 CAD - $204.00 CAD
$204.00 CAD

Vendu en lots de : 1

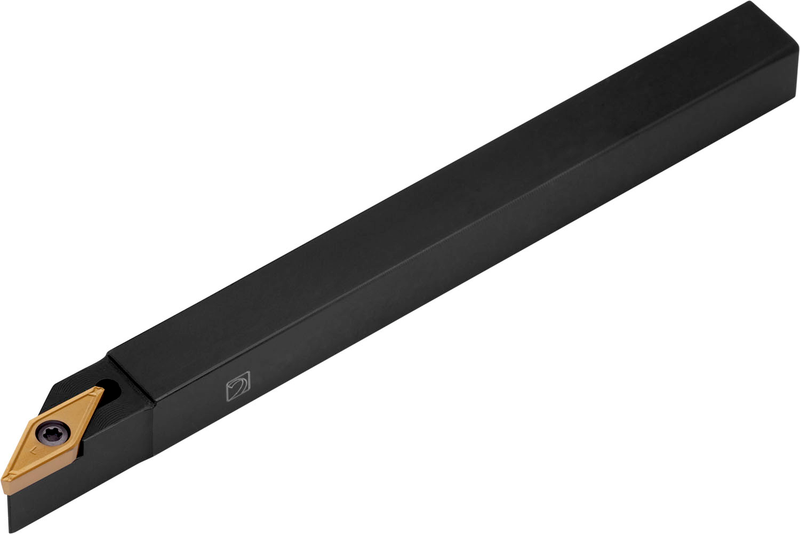

Outil de tournage à bride par vis pour plaquette positive en forme de losange de 35° avec un diamètre de cercle inscrit de 7,94 mm, de 3,18 mm d'épaisseur (désignation ISO VCGX 1303..), coupe à droite à 90° avec queue droite, hauteur d'outil de 20 mm x largeur de 20 mm x longueur de 150 mm pour le chariotage avec ou sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVACR 2020 M 13-DC
Product Number6760834
Product FamilySVAC(RL)-CC EXT

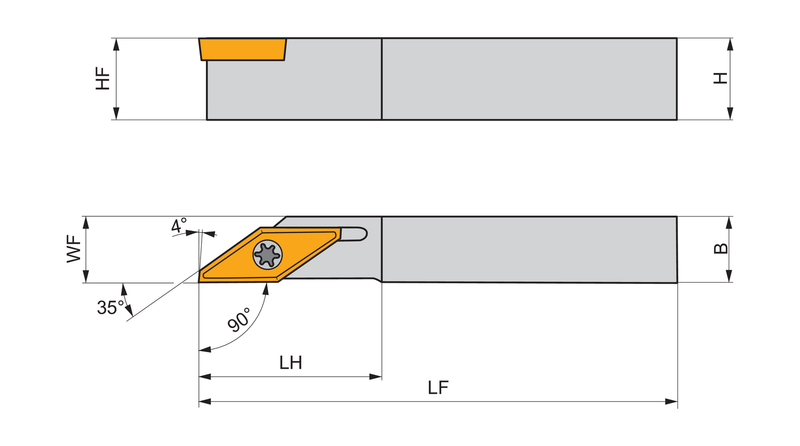

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Reference Numbers
EDP Number6760834
EAN3603602961808
File Type Download
SVACR 2020 M 13-DC — Line Drawing PDF Download
