D 50090 402
D 50090 402

D 50090 402

UGC DOR6760865
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6,508.00 CAD - $6,508.00 CAD
$6,508.00 CAD
$6,508.00 CAD - $6,508.00 CAD
$6,508.00 CAD

Vendu en lots de : 1

Tête d'alésage à cartouche de grand diamètre taille 500 avec angle d'approche de 90° et réglage synchronisé pour l'ébauche dans une plage de diamètre de 370 à 500 mm, complète avec 3 cartouches CT 90 402 pour les plaquettes CC.. 1204.. pour l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D 50090 402
Product Number6760865
Product FamilyD90-BB

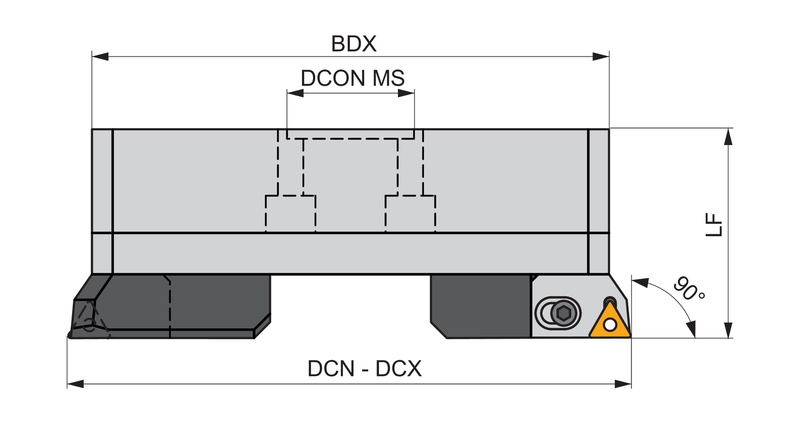

Dimensions
Functional Length — mm (LF)90.0 mm
Connection Dia. — in (DCON)2.362"
Connection Dia. — mm (DCON)60.0 mm
Tool Information
Reference Numbers
EDP Number6760865
EAN3603602962119
File Type Download
D 50090 402 — Line Drawing PDF Download
