D 10090 402
D 10090 402

D 10090 402

UGC DOR6760890
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,326.00 CAD - $2,326.00 CAD
$2,326.00 CAD
$2,326.00 CAD - $2,326.00 CAD
$2,326.00 CAD

Vendu en lots de : 1

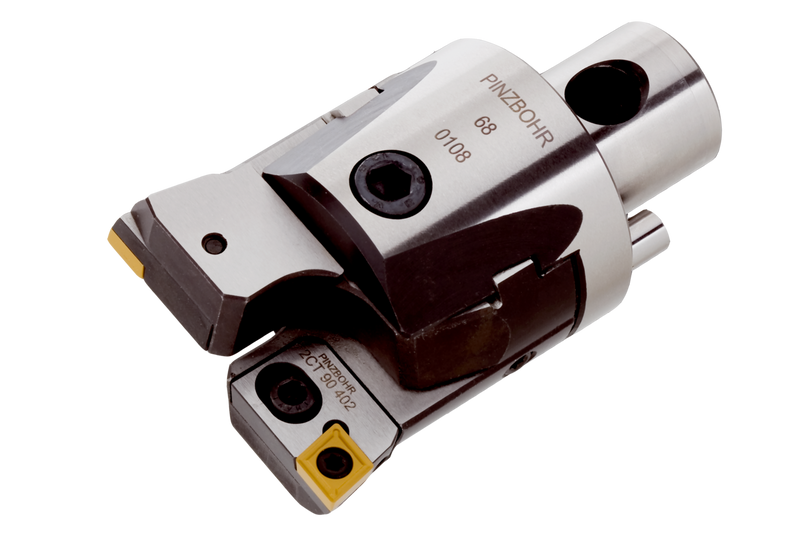

Tête d'alésage à cartouche de taille 100 avec angle d'attaque de 90° et réglage synchronisé pour l'ébauche dans une plage de diamètres de 125 à 160 mm, livrée avec 3 cartouches CT 90 402 pour maintenir les plaquettes CC.. 1204.. pour l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI)D 10090 402
Product Name (ISO)R 10090 402
Product Number6760890
Product FamilyD90-C
Dimensions
Functional Length — mm (LF)100.0 mm
Connection Dia. — in (DCON)2.362"
Connection Dia. — mm (DCON)60.0 mm
Tool Information
Reference Numbers
EDP Number6760890
EAN3603602962362
File Type Download

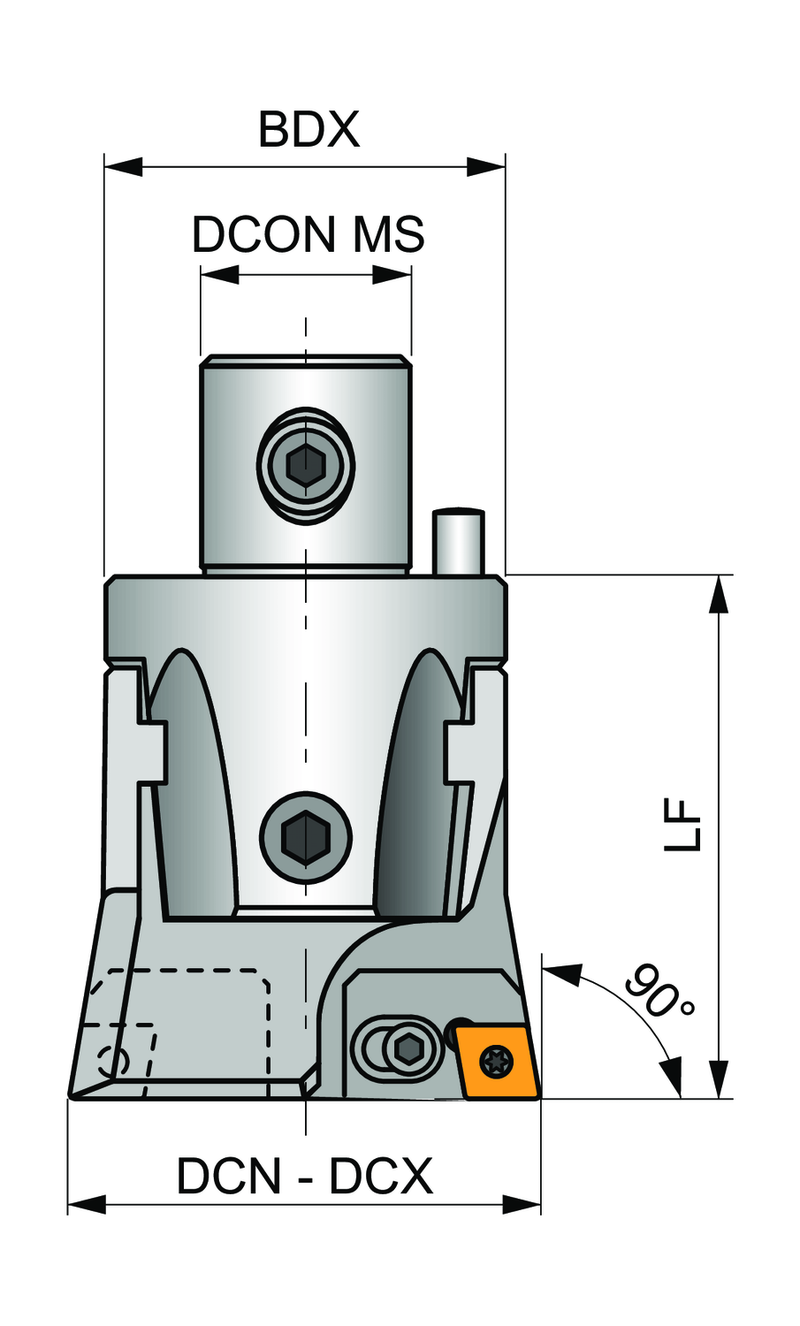

D 10090 402 — Line Drawing PDF Download
