A10K-SCLCL 08
A10K-SCLCL 08
A10K-SCLCL 08

A10K-SCLCL 08

UGC DOR6760895
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.00 CAD - $197.00 CAD
$197.00 CAD
$197.00 CAD - $197.00 CAD
$197.00 CAD

Vendu en lots de : 1

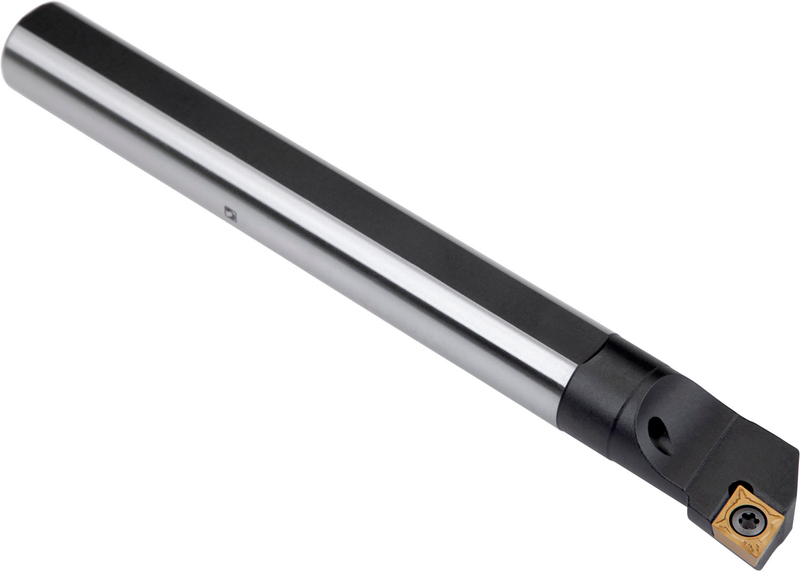

Barre d'alésage à serrage par vis pour plaquette positive rhomboïde 80° avec diamètre de cercle inscrit de 7,94 mm, 3,18 mm d'épaisseur (désignation ISO CC.. 0803.. ), coupe à gauche 95° latérale et frontale avec corps déporté, acier avec trou d'arrosage, 10 mm de diamètre x 125 mm de long pour l'alésage conique et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A10K-SCLCL 08
Product Number6760895
Product FamilyCPPC(LC) INT
Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Connection Dia. — in (DCON)0.394"
Connection Dia. — mm (DCON)10.0 mm
Shank Height — mm (H)0.354 mm
Min. Bore Dia. — in (DMIN)0.472"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6760895
EAN3603602962416
File Type Download

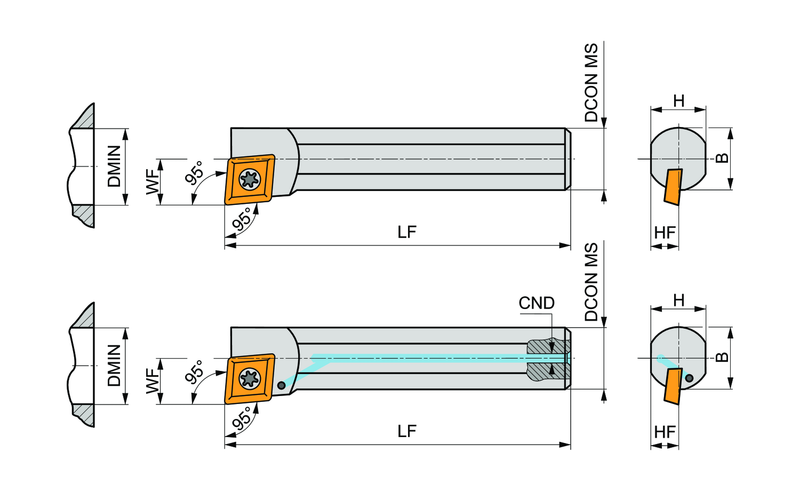

A10K-SCLCL 08 — Line Drawing PDF Download
