A20S-SVQCR 13
A20S-SVQCR 13
A20S-SVQCR 13

A20S-SVQCR 13

UGC DOR6760902
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$259.00 CAD - $259.00 CAD
$259.00 CAD
$259.00 CAD - $259.00 CAD
$259.00 CAD

Vendu en lots de : 1

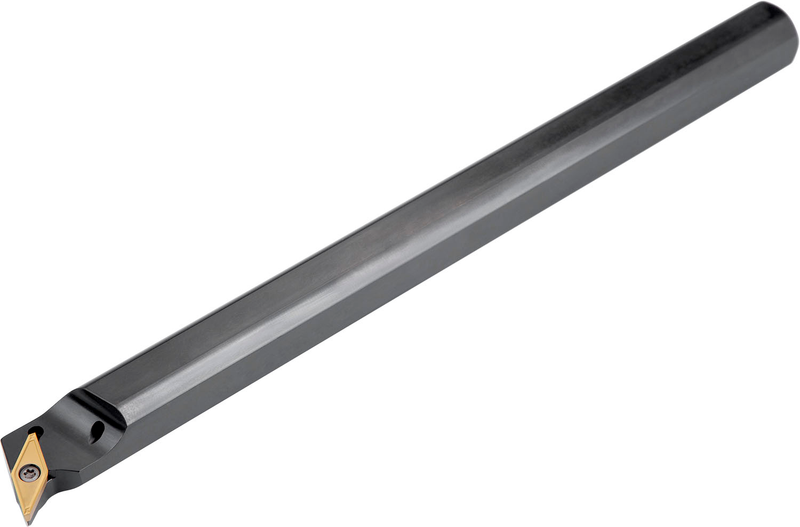

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 35° avec cercle inscrit de 7,94 mm de diamètre, 3,18 mm d'épaisseur (désignation ISO VC.. 1303.. ), coupe à droite 107°30' avec queue déportée, en acier avec trou d'arrosage, 20 mm de diamètre x 250 mm de long pour alésage à copier unidirectionnel et multidirectionnel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A20S-SVQCR 13
Product Number6760902
Product FamilySVQB(C)(RL) INT

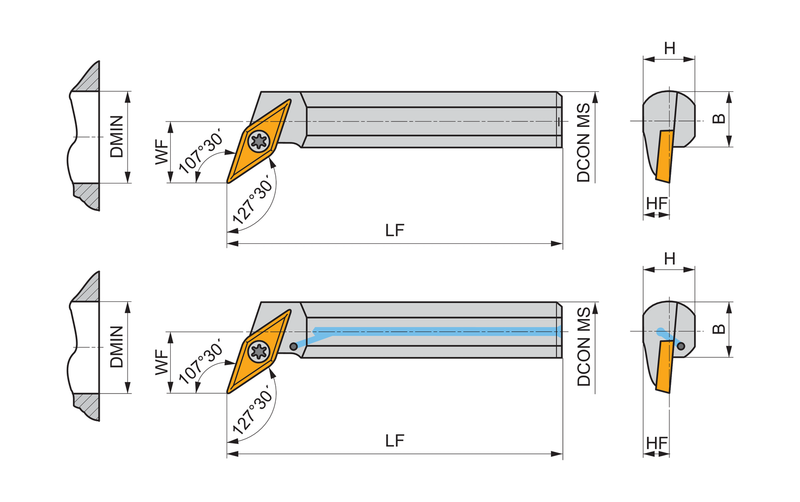

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)0.709 mm
Min. Bore Dia. — in (DMIN)0.984"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6760902
EAN3603602962485
File Type Download
A20S-SVQCR 13 — 3D Model STP Download
A20S-SVQCR 13 — Line Drawing PDF Download
