A20S-SVLCL 13-X
A20S-SVLCL 13-X
A20S-SVLCL 13-X

A20S-SVLCL 13-X

UGC DOR6760903
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$259.00 CAD - $259.00 CAD
$259.00 CAD
$259.00 CAD - $259.00 CAD
$259.00 CAD

Vendu en lots de : 1

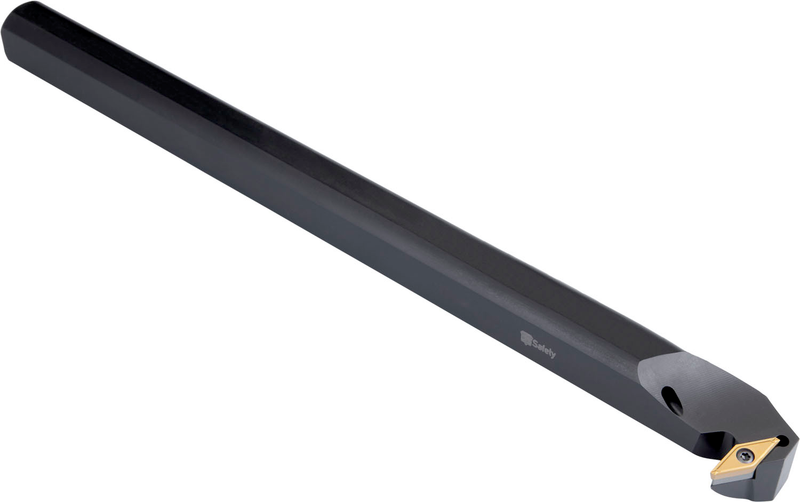

Porte-outil à vis pour une plaquette positive en forme de losange à 35° avec un diamètre de cercle inscrit de 7,94 mm, une épaisseur de 3,18 mm (désignation ISO VC.. 1303..), coupe à gauche à 95° en bout et en chariot avec queue déportée, en acier avec trou d'arrosage, 20 mm de diamètre x 250 mm de long pour chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A20S-SVLCL 13-X
Product Number6760903
Product FamilySVLC(RL) INT

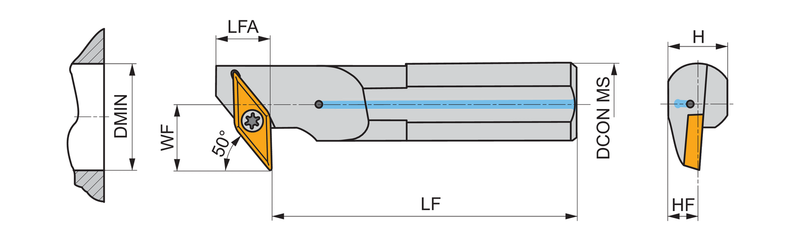

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)0.709 mm
Min. Bore Dia. — in (DMIN)1.063"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6760903
EAN3603602962492
File Type Download
A20S-SVLCL 13-X — Line Drawing PDF Download
