A25T-SVLCR 13-X
A25T-SVLCR 13-X
A25T-SVLCR 13-X

A25T-SVLCR 13-X

UGC DOR6760906
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$293.00 CAD - $293.00 CAD
$293.00 CAD
$293.00 CAD - $293.00 CAD
$293.00 CAD

Vendu en lots de : 1

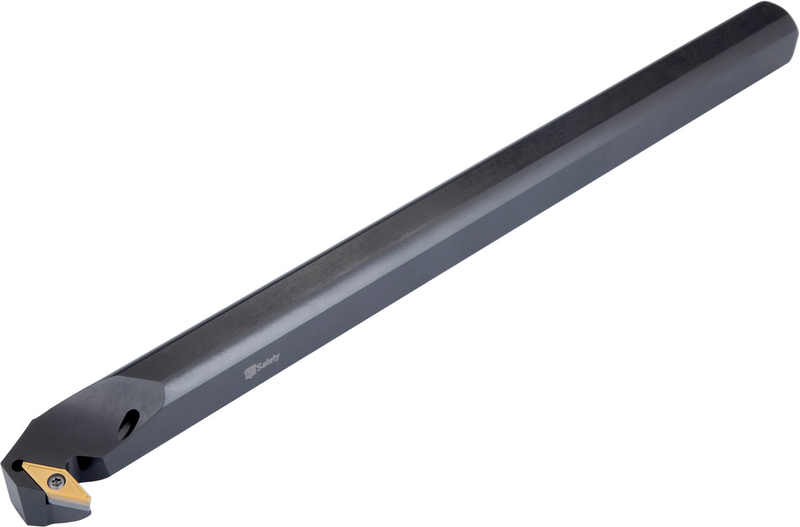

Barre d'alésage à serrage par vis pour plaquette positive rhomboïde 35° avec cercle inscrit de 7,94mm de diamètre, 3,18mm d'épaisseur (désignation ISO VC.. 1303.. ), coupe à droite 95° latérale et frontale avec queue déportée, acier avec trou d'arrosage, 25mm de diamètre x 300mm de long pour le chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25T-SVLCR 13-X
Product Number6760906
Product FamilySVLC(RL) INT

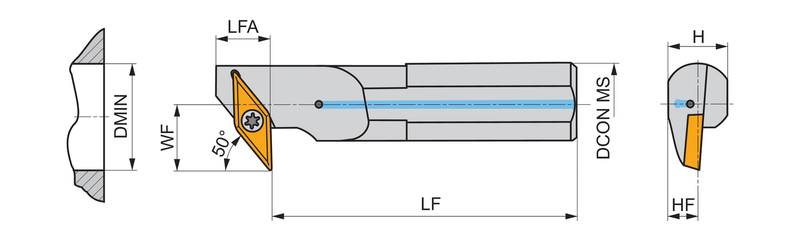

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.945 mm
Min. Bore Dia. — in (DMIN)1.378"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6760906
EAN3603602962522
File Type Download
A25T-SVLCR 13-X — Line Drawing PDF Download
